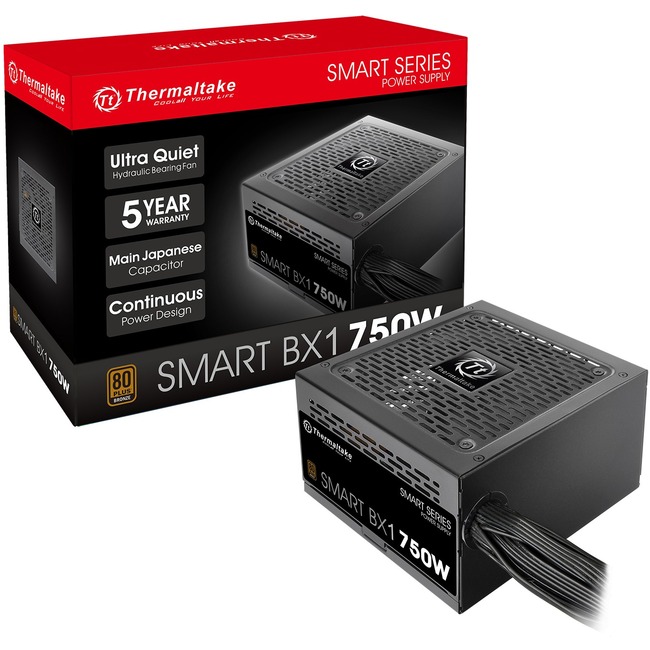

Thermaltake Smart BX1 SPD-750AH2NKB Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 18 A, 12 V DC @ 56 A, 12 V DC @ 500 mA, 5 V DC @ 2.5 A Output - 750 W - 1 +12V Rails - 1 Fan(s) - ATI CrossFire Supported - NVIDIA SLI Supported - 88% Efficiency
Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 18 A, 12 V DC @ 56 A, 12 V DC @ 500 mA, 5 V DC @ 2.5 A Output - 750 W - 1 +12V Rails - 1 Fan(s) - ATI CrossFire Supported - NVIDIA SLI Supported - 88% Efficiency
| Modular | No |
| Modular | No |
| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | Thermaltake |
| Brand Name | Thermaltake |
| Country of origin | China |
| Country of origin | China |
| Efficiency | 88% |
| Efficiency | 88% |
| Environmental Certification | 80 Plus Bronze |
| Environmental Certification | 80 Plus Gold |
| Environmental Certification | 80 Plus Gold |
| Environmental Certification | 80 Plus Bronze |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Form factor | Internal |
| Height | 5.5" |
| Height | 5.5" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Length | 5.9" |
| Length | 5.9" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer | Thermaltake Technology Co. Ltd |
| Manufacturer Part Number | PS-SPD-0750NNFABU-1 |
| Manufacturer Part Number | PS-SPD-0750NNFABU-1 |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Marketing Information | Smart BX1 750W Built to deliver 80 PLUS Bronze with 88% power efficiency the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40? near silent operation and reliable performance. With an ample 5-year warranty the Smart BX1 is able to satisfy the market where value-oriented users are looking for a new power supply with all the latest features. Ultra Quiet 120mm Hydraulic Bearing Fan Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation. Low Ripple Noise All ripples are lower than 80mV on +12V and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components such as high-end graphics cards to function reliably for longer. Premium Japanese Main Capacitor Providing great durability as well as offering the highest stability while remaining reliable. High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components. Multiple Connectors Soft black cables come with sleeve cabling designed to make cable installation an easy task while fully powering the system at optimal voltages 80 PLUS Gold Certified and Intel C6/C7 States Ready Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving. |
| Marketing Information | Smart BX1 750W Built to deliver 80 PLUS Bronze with 88% power efficiency the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40? near silent operation and reliable performance. With an ample 5-year warranty the Smart BX1 is able to satisfy the market where value-oriented users are looking for a new power supply with all the latest features. Ultra Quiet 120mm Hydraulic Bearing Fan Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation. Low Ripple Noise All ripples are lower than 80mV on +12V and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components such as high-end graphics cards to function reliably for longer. Premium Japanese Main Capacitor Providing great durability as well as offering the highest stability while remaining reliable. High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components. Multiple Connectors Soft black cables come with sleeve cabling designed to make cable installation an easy task while fully powering the system at optimal voltages 80 PLUS Gold Certified and Intel C6/C7 States Ready Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving. |
| Number of Fans | 1 |
| Number of Fans | 1 |
| Output power | 750 W |
| Output power | 750 W |
| Output voltage | 5 V DC @ 2.5 A |
| Output voltage | 12 V DC @ 56 A |
| Output voltage | 12 V DC @ 500 mA |
| Output voltage | 5 V DC @ 2.5 A |
| Output voltage | 12 V DC @ 56 A |
| Output voltage | 5 V DC @ 18 A |
| Output voltage | 3.3 V DC @ 24 A |
| Output voltage | 3.3 V DC @ 24 A |
| Output voltage | 12 V DC @ 500 mA |
| Output voltage | 5 V DC @ 18 A |
| Product Line | Smart BX1 |
| Product Line | Smart BX1 |
| Product Model | SPD-750AH2NKB |
| Product Model | SPD-750AH2NKB |
| Product Name | Smart BX1 SPD-750AH2NKB Power Supply |
| Product Name | Smart BX1 SPD-750AH2NKB Power Supply |
| Product Type | Power Supply |
| Product Type | Power Supply |
| UPC Alternates | 841163006269 |
| UPC Alternates | 841163006269 |
| Width | 3.4" |
| Width | 3.4" |
