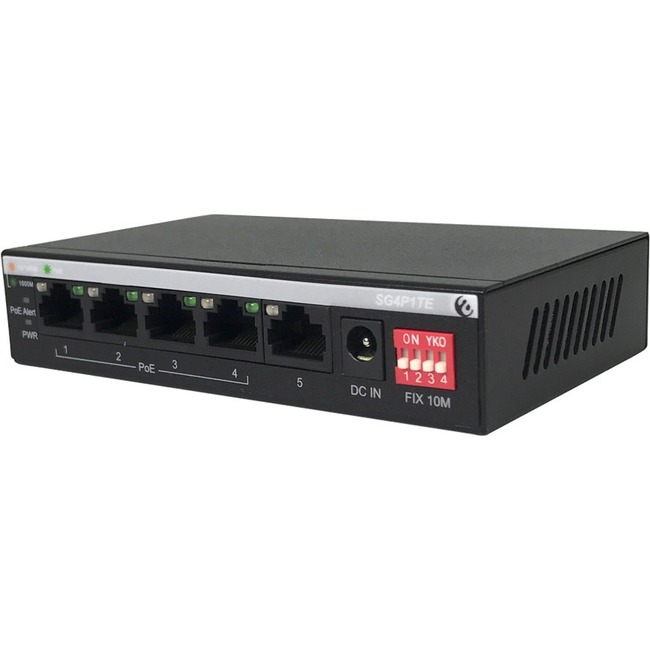

Amer 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch - 5 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Twisted Pair - Desktop - 3 Year Limited Warranty
5 Ports - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - Twisted Pair - Desktop - 3 Year Limited Warranty
| Total Number of Network Ports | 5 |
| Brand Name | Amer |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Desktop |
| Height | 1" |
| Layer Supported | 2 |
| Length | 4.8" |
| Limited Warranty | 3 Year |
| Manageable | No |
| Manufacturer | Amer Networks Inc |
| Manufacturer Part Number | SG4P1TE |
| Manufacturer Website Address | http://www.amermounts.com |
| Marketing Information | The SG4P1TE is a 5 port Gigabit 10/100/1000Base-T Ethernet unmanaged switch supporting 4 high power 802.3af/802.3at PoE+ ports with a total PoE budget of 60W. Each PoE+ port can be controlled manually to support either 10/100/1000Mbps at the standard Ethernet distance of 100m or set to 10Mbps to support range extension to a maximum of 180m (range dependent on cable quality). The compact size of the SG4P1TE makes it ideal for users with limited space. It is an excellent solution for network devices that require high-power such as indoor and outdoor surveillance equipment and access points. Key Features and Benefits: - Compliant with IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE 802.3af IEEE 802.3at
- Support Link-on cable length power saving and link-down power saving
- N-way auto-negotiation
- Alert system notification when PoE Power passes 50w and is close to the power budget
- Dip switch to place selceted port into Extended range mode at 10mbps
- Fanless Design
|
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Power source | AC Adapter |
| Product Name | 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 650177303789 |
| Width | 3" |
