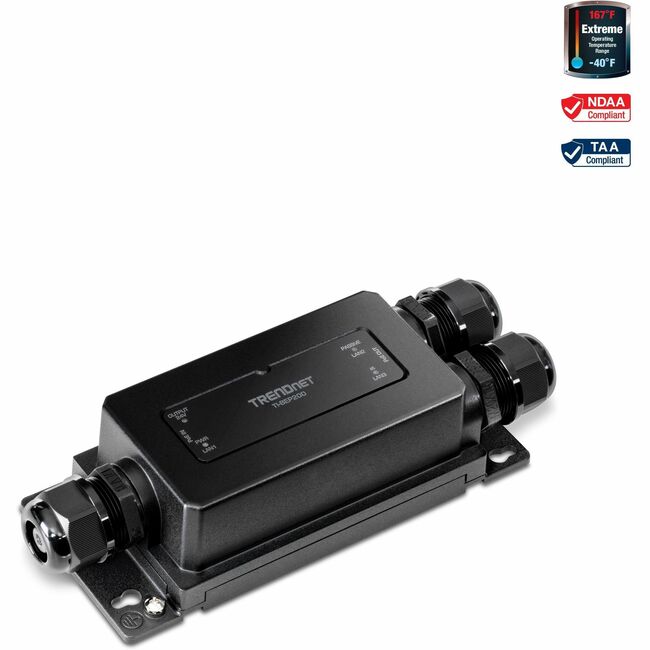

TRENDnet 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender - 48 V DC Output - 1 x Gigabit PoE++ Input Port(s) - 1 x Gigabit PoE+, 1 x Gigabit PoE Output Port(s) - 30 W
48 V DC Output - 1 x Gigabit PoE++ Input Port(s) - 1 x Gigabit PoE+, 1 x Gigabit PoE Output Port(s) - 30 W
| Input Ports | 1 x Gigabit PoE++ |
| Maximum Output Voltage | 48 V DC |
| Output Ports | 1 x Gigabit PoE |
| Output Ports | 1 x Gigabit PoE+ |
| Certifications & Standards | Standards - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Certifications - CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
|
| Country of origin | Taiwan |
| Depth | 2.9" |
| Form factor | Wall Mountable |
| Height | 1.7" |
| Limited Warranty | 3 Year |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-BEP200 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE+ out port; 1 x Gigabit 24/48V DC Passive PoE out port; LED Indicators; Wall mount
- EXTENSION DISTANCE: Take a single PoE++ (90W) connection and extend it an additional 100 meters (328 ft.) to PoE (15.4W) PoE+ (30W) and PoE++ (60W) devices for a total distance up to 200m (656 ft.)
- DAISY CHAIN: Daisy chain up to 4 gigabit PoE extenders for a total PoE network extension of up to 500m (1640 ft.)
- POE POWERED: The extender does not require external power which saves installation time and costs
- OUTDOOR READY: This PoE extender is equipped with IP67 rated housing with a wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Easy installation and built-in True Surge 6kV Protection
- 100% Peak Load Capability
- UL 508 approved
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 2-Port Industrial Outdoor Gigabit PoE Extender model TI-BEP200 takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W) PoE+ (30W) or PoE+ (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor PoE extender features a single PoE++ input port and one PoE+ and one Passive PoE output ports.
PoE Power Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W) PoE+ (30W) and Passive PoE (24-48V) devices.
Gigabit Ports Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices. Outdoor Rated Built for outdoor and industrial environments with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F). More from the Manufacturer |
| Marketing Information | - DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE+ out port; 1 x Gigabit 24/48V DC Passive PoE out port; LED Indicators; Wall mount
- EXTENSION DISTANCE: Take a single PoE++ (90W) connection and extend it an additional 100 meters (328 ft.) to PoE (15.4W) PoE+ (30W) and PoE++ (60W) devices for a total distance up to 200m (656 ft.)
- DAISY CHAIN: Daisy chain up to 4 gigabit PoE extenders for a total PoE network extension of up to 500m (1640 ft.)
- POE POWERED: The extender does not require external power which saves installation time and costs
- OUTDOOR READY: This PoE extender is equipped with IP67 rated housing with a wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Easy installation and built-in True Surge 6kV Protection
- 100% Peak Load Capability
- UL 508 approved
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 2-Port Industrial Outdoor Gigabit PoE Extender model TI-BEP200 takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W) PoE+ (30W) or PoE+ (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor PoE extender features a single PoE++ input port and one PoE+ and one Passive PoE output ports.
PoE Power Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W) PoE+ (30W) and Passive PoE (24-48V) devices.
Gigabit Ports Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices. Outdoor Rated Built for outdoor and industrial environments with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F). More from the Manufacturer |
| Maximum Output Power | 30 W |
| Minimum Output Voltage | -24 V DC |
| Package Contents | - 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender
- Quick Installation Guide
- 3 x IP67 Weather Rated Cable Glands
- Wrench
- Wall Mount Screws
|
| Product Name | 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender |
| Product Type | PoE+ Extender |
| Protection Type | Surge Protection |
| TAA Compliant | Yes |
| UPC Alternates | 710931162400 |
| Weight (Approximate) | 9.38 oz |
| Width | 6.6" |
