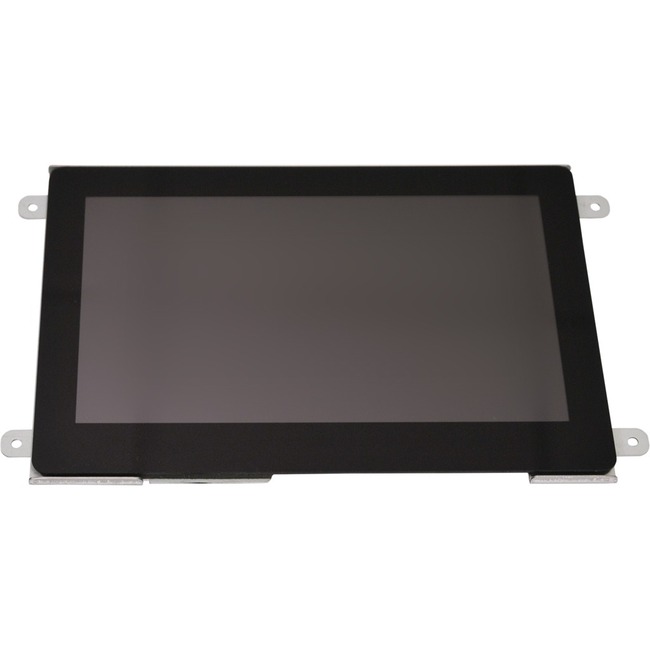

Mimo Monitors UM-760CH-OF 7" Open-frame LCD Touchscreen Monitor - 16:9 - 15 ms - 7" Class - CapacitiveMulti-touch Screen - 1024 x 600 - WSVGA - 262,144 Colors - 700:1 - 250 Nit - LED Backlight - Speakers - HDMI - USB - RoHS - 1 Year
7" Class - CapacitiveMulti-touch Screen - 1024 x 600 - WSVGA - 262,144 Colors - 700:1 - 250 Nit - LED Backlight - Speakers - HDMI - USB - RoHS - 1 Year
| Touchscreen Type | Capacitive |
| Vertical Viewing Angle | 145° |
| Aspect ratio | 16:9 |
| Backlight Technology | LED |
| Brand Name | Mimo Monitors |
| Brightness | 250 Nit |
| Color Supported | 262144 Colors |
| Contrast Ratio | 700:1 |
| Country of origin | South Korea |
| Depth | 0.4" |
| Environmental Certification | RoHS |
| Height | 4.9" |
| Horizontal Viewing Angle | 150° |
| Limited Warranty | 1 Year |
| Manufacturer | Mimo Monitors Inc |
| Manufacturer Part Number | UM-760CH-OF |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Marketing Information | Open Frame 7" USB Capacitive Touch Screen Monitor The UM-760C-OF/UM-760CH-OF adds Capacitive touch to the 7" line of open frame displays. The UM-760C-OF/UM-760CH-OF is a 7" small capacitive open frame touchscreen monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but now with the responsiveness of a 5 point multi-touch capacitive touchscreen all in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The screen can display in either landscape or portrait orientations. The UM-760C-OF/UM-760CH-OF open frame touchscreen monitor is designed to provide the most cost effective solutions for consumer retail POS and hospitality markets. Available in Single Cable USB Video Utilizing the same single cable USB display technology as our line of displays the UM-760C-OF sends video touch and power over a single USB connection. And now available with HDMI Now optionally available with the ubiquitous HDMI input for video. Previously only available with the convenience of single cable USB video the UM-760CH-OF from Mimo Monitors now offers HDMI to supplement where USB video is not supported or inconvenient. With the HID compliant touch screen plus HDMI video the new UM-760CH-OF can be installed to almost any platform without drivers. Uniquely this new monitor line still reduces number of cables. While a typical HDMI touch display will require 3 separate cables the new HDMI touch displays from Mimo Monitors only require 2 cables. This simplifies connection and makes for a more attractive installation. |
| Maximum resolution | 1024 x 600 |
| Mount Type | Rear Mount |
| Product Name | Open Frame 7" USB Capacitive Touch Screen Monitor |
| Product Series | UM-760 |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response time | 15 ms |
| Screen Mode | WSVGA |
| Speakers | Yes |
| UPC Alternates | 606345997847 810020600315 991429321213 |
| Viewable Screen Size | 7" |
| Width | 7.6" |
