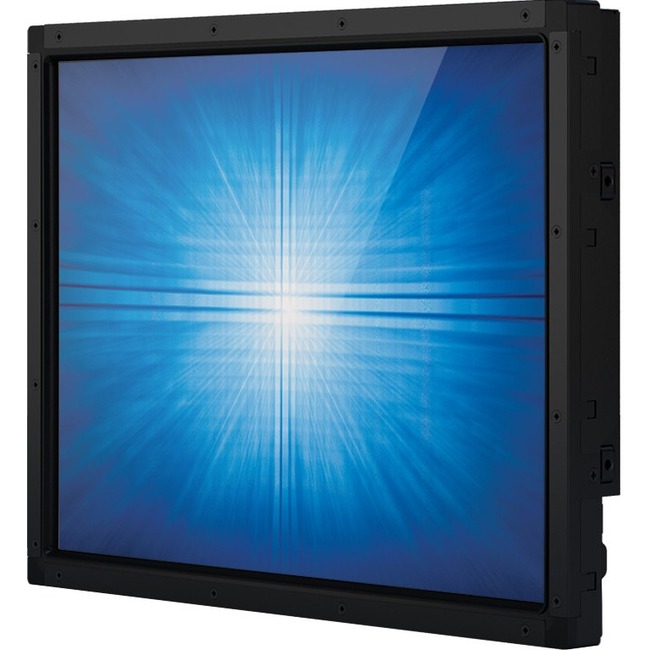

Elo 1598L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 35 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 1,500:1 - 500 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black
15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 1,500:1 - 500 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black
| Touchscreen Type | 5-wire Resistive |
| Aspect ratio | 4:3 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 500 Nit |
| Color Supported | 16.2 Million Colors |
| Contrast Ratio | 1500:1 |
| Depth | 1.7" |
| Height | 10.4" |
| Manufacturer | Elo Touch Solutions Inc |
| Manufacturer Part Number | E126407 |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 15-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration. Touch ready. The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology the preferred solution for applications that demand reliability input flexibility and contamination resistance. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF. Other features. - HDMI Display Port and VGA video interfaces
- Backed by a standard three-year warranty extendable to five years including the LCD panel
|
| Maximum resolution | 1024 x 768 |
| Mount Type | Rack-mountable |
| Mount Type | Front Mount |
| Operating Power Consumption | 14.10 W |
| Product color | Black |
| Product Model | 1598L |
| Product Name | 1598L 15" Open Frame Touchscreen (Rev A) |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response time | 35 ms |
| Screen Mode | XGA |
| UPC Alternates | 815335024726 |
| USB | Yes |
| Viewable Screen Size | 15" |
| Weight (Approximate) | 6.40 lb |
| Width | 13.2" |
