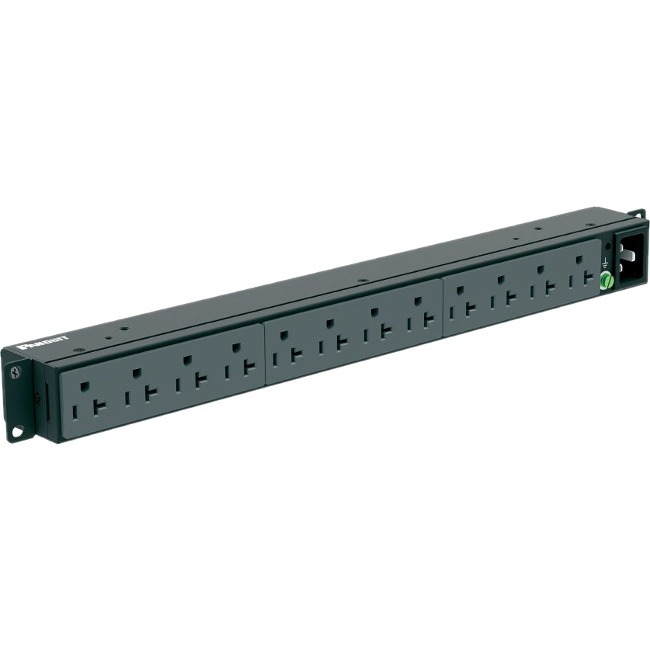

Panduit P12B19M Horizontal Basic Power Distribution Unit - Basic - NEMA 5-20P - 12 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable
Basic - NEMA 5-20P - 12 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| PDU Type | Basic |
| PDU Type | Basic |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (VA) | 1900 VA |
| Power Rating (VA) | 1900 VA |
| Receptacle Detail | 12 x NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Remote Outlet Switching | No |
| Remote Outlet Switching | No |
| Brand Name | Panduit |
| Brand Name | Panduit |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 2" |
| Depth | 2" |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 1.6" |
| Height | 1.6" |
| Input current | 20 A |
| Input current | 20 A |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | PANDUIT CORP |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P12B19M |
| Manufacturer Part Number | P12B19M |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output Voltage Range | 120 V AC - 240 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA 5-20P |
| Plug/Connector Type | NEMA 5-20P |
| Product Line | SmartZone |
| Product Line | SmartZone |
| Product Name | P12B19M Horizontal Basic Power Distribution Unit |
| Product Name | P12B19M Horizontal Basic Power Distribution Unit |
| Product Type | PDU |
| Product Type | PDU |
| Rack Height | 1U |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 613056263314 |
| UPC Alternates | 613056263314 |
| Width | 17.5" |
| Width | 17.5" |
