| Mounting Orientation | Horizontal |
| PDU Type | Basic |
| Phase | Single Phase |
| Power Rating (VA) | 1400 VA |
| Receptacle Detail | 12 x NEMA 5-20R |
| Remote Outlet Switching | No |
| Brand Name | Panduit |
| Country of origin | United States |
| Depth | 2" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.6" |
| Input current | 16 A |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P12B01M |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant). These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Mount Type | Rack-mountable |
| Output Voltage Range | 120 V AC - 240 V AC |
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA 5-15P |
| Product Line | SmartZone |

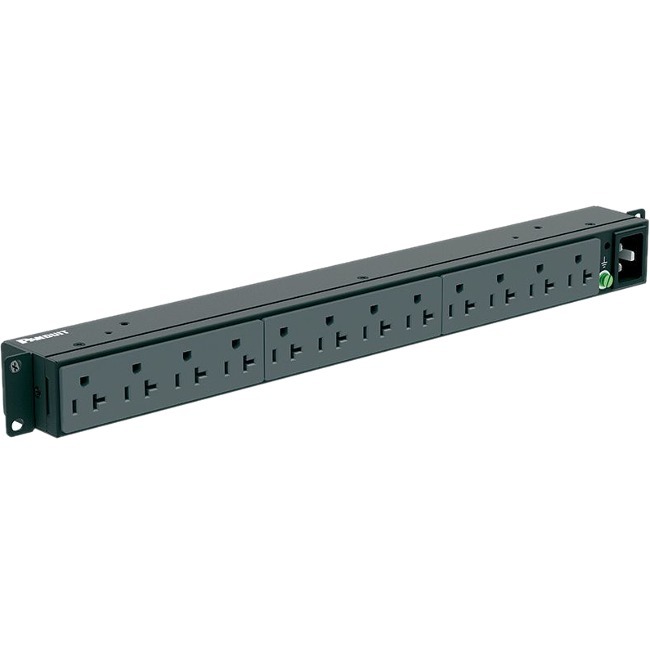

| Product Name | P12B01M Horizontal Basic Power Distribution Unit |
| Product Type | PDU |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 613056263307 |
| Width | 17.5" |
