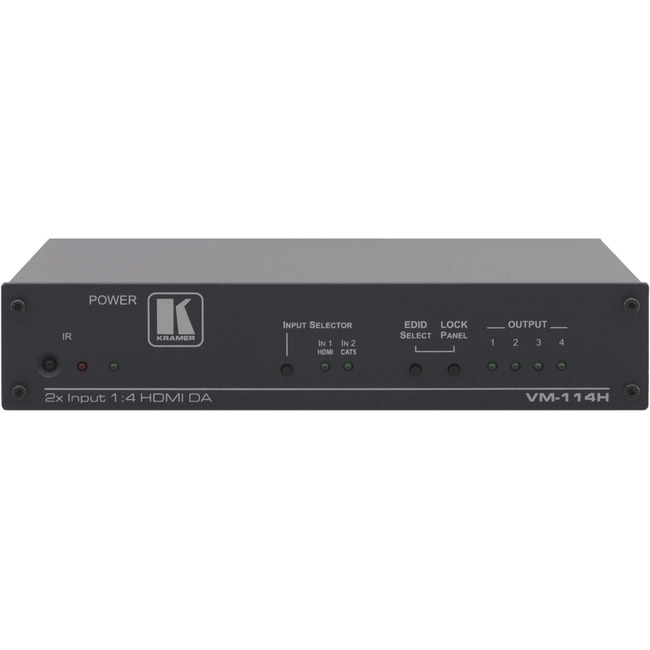

Kramer 2x1:4 HDMI/Twisted Pair Switcher & HDMI Distribution Amplifier - 1920 x 1080 - Full HD - 1080i - Twisted Pair - 2 x 4 - Display, DVD Player, TV - 4 x HDMI Out
1920 x 1080 - Full HD - 1080i - Twisted Pair - 2 x 4 - Display, DVD Player, TV - 4 x HDMI Out
| HDMI In | Yes |
| Number of Input Devices Supported | 2 |
| Brand Name | Kramer |
| Connectivity technology | Cable |
| Depth | 6.4" |
| Device Supported | DVD Player |
| Device Supported | TV |
| Device Supported | Display |
| Form factor | Rack-mountable |
| Graphics Modes | Full HD |
| Height | 1.7" |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VM-114H |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The VM-114H is a switcher/distribution amplifier for HDMI and DGKat™ twisted pair signals. It reclocks and equalizes one of two selectable input signals and distributes it to four identical HDMI outputs. - Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel HDMI) 4.95Gbps (1.65Gbps per graphic channel DGKat).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- HDMI Support - Deep Color (on the HDMI input) x.v.Color™ HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD.
- 3D Pass-Through.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- System Range - Up to 90m (295ft) at 1080i or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
- Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance use Kramer's BC-DGKat524 BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution graphics card and display used. The distance using non-Kramer CAT 5 CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Active Input & Output LED Indicators.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
- Flexible Control Options - Front panel buttons RS-232 IR control sensor remote included.
- Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.
|
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Package Contents | - 2x1:4 HDMI/Twisted Pair Switcher & HDMI Distribution Amplifier
- Power Supply
- Bracket Installation Kit
- RC-IR3 Infrared Remote Control Transmitter
|
| Product Name | 2x1:4 HDMI/Twisted Pair Switcher & HDMI Distribution Amplifier |
| Product Type | Audio/Video Switchbox |
| Scan Format | 1080i |
| Weight (Approximate) | 1.98 lb |
| Width | 8.5" |
