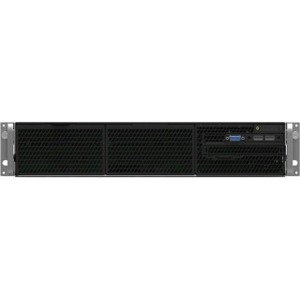

Intel Server System R2208WFTZSR Barebone System - 2U Rack-mountable - 2 x Processor Support - Intel C624 Chip - 7.50 TB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - 8 2.5" Bay(s) - 10 SATA Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet - Intel Optane Memory Ready - 1 x 1300 W - 3 Year
Intel C624 Chip - 7.50 TB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - 8 2.5" Bay(s) - 10 SATA Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet - Intel Optane Memory Ready - 1 x 1300 W - 3 Year
| 64-bit Processing | Yes |
| 64-bit Processing | Yes |
| Chipset | Intel C624 |
| Chipset | Intel C624 |
| Chipset Model | C624 |
| Chipset Model | C624 |
| Maximum Memory Supported | 7.50 TB |
| Maximum Memory Supported | 7.50 TB |
| Maximum Power Supply Wattage | 1300 W |
| Maximum Power Supply Wattage | 1300 W |
| Memory Standard | DDR4-2933/PC4-23466 |
| Memory Standard | DDR4-2933/PC4-23466 |
| Number of Internal 2.5" Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of Processors Supported | 2 |
| Number of Processors Supported | 2 |
| Number of SATA Interfaces | 10 |
| Number of SATA Interfaces | 10 |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Bronze |
| Brand Name | Intel |
| Brand Name | Intel |
| Controller Type | 12Gb/s SAS |
| Controller Type | 12Gb/s SAS |
| Depth | 28" |
| Depth | 28" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Height | 3.4" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Intel Corporation |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | R2208WFTZSR |
| Manufacturer Part Number | R2208WFTZSR |
| Manufacturer Website Address | http://www.intel.com |
| Manufacturer Website Address | http://www.intel.com |
| Marketing Information | Customers want data center products designed for outstanding performance and reliability that will address their unique needs. With Intel® Server Systems and Intel® Server Chassis you can count on trusted performance quality and reliability to help solve the most complex business challenges. |
| Marketing Information | Customers want data center products designed for outstanding performance and reliability that will address their unique needs. With Intel® Server Systems and Intel® Server Chassis you can count on trusted performance quality and reliability to help solve the most complex business challenges. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 9 |
| Number of Total Expansion Bays | 9 |
| Number of Total Memory Slots | 24 |
| Number of Total Memory Slots | 24 |
| Package Contents | - Server System R2208WFTZSR
- 1 x 2U Chassis with Quick Reference Label affixed to top cover
- 1 x Intel® Server Board S2600WFTR (dual 10 GbE LAN)
- 2 x PCIe riser card brackets.
- 2 x 3-slot PCIe* riser cards
- 1 x 2-slot low profile PCIe* riser card A2UX8X4RISER
- 8 x 2.5" hot-swap drive bays with drive carriers and blanks.
- 1 x SAS/NVMe combo
- 8 x 2.5" hot-swap drive tool less carriers
- 1 x Standard control panel assembly (board only)
- 1 x - Front I/O panel assembly (1 x VGA and 2 x USB)
- 1 x Backplane I2C cable
- 2 x Mini SAS HD cable
- 1 x 400/525/675 mm backplane power cable
- 1 x SATA optical drive power cable
- 1 x SATA optical drive bay mounting kit
- 1 x Standard 2U air duct
- 6 x Hot-swap system fans FR2UFAN60HSW
- 8 x DIMM slot blanks
- 1 x 1300W AC power supply module
- 1 x Power supply bay blank insert
- 2 x AC Power cord retention strap assembly
- 2 x CPU heat sinks
|
| Package Contents | - Server System R2208WFTZSR
- 1 x 2U Chassis with Quick Reference Label affixed to top cover
- 1 x Intel® Server Board S2600WFTR (dual 10 GbE LAN)
- 2 x PCIe riser card brackets.
- 2 x 3-slot PCIe* riser cards
- 1 x 2-slot low profile PCIe* riser card A2UX8X4RISER
- 8 x 2.5" hot-swap drive bays with drive carriers and blanks.
- 1 x SAS/NVMe combo
- 8 x 2.5" hot-swap drive tool less carriers
- 1 x Standard control panel assembly (board only)
- 1 x - Front I/O panel assembly (1 x VGA and 2 x USB)
- 1 x Backplane I2C cable
- 2 x Mini SAS HD cable
- 1 x 400/525/675 mm backplane power cable
- 1 x SATA optical drive power cable
- 1 x SATA optical drive bay mounting kit
- 1 x Standard 2U air duct
- 6 x Hot-swap system fans FR2UFAN60HSW
- 8 x DIMM slot blanks
- 1 x 1300W AC power supply module
- 1 x Power supply bay blank insert
- 2 x AC Power cord retention strap assembly
- 2 x CPU heat sinks
|
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Product Line | Server System |
| Product Line | Server System |
| Product Name | Server System R2208WFTZSR |
| Product Name | Server System R2208WFTZSR |
| Product Type | Barebone System |
| Product Type | Barebone System |
| Rack Height | 2U |
| Rack Height | 2U |
| Total Number of USB Ports | 5 |
| Total Number of USB Ports | 5 |
| UPC Alternates | 675901715065 735858406840 818244880544 |
| UPC Alternates | 675901715065 735858406840 818244880544 |
| Width | 16.9" |
| Width | 16.9" |
