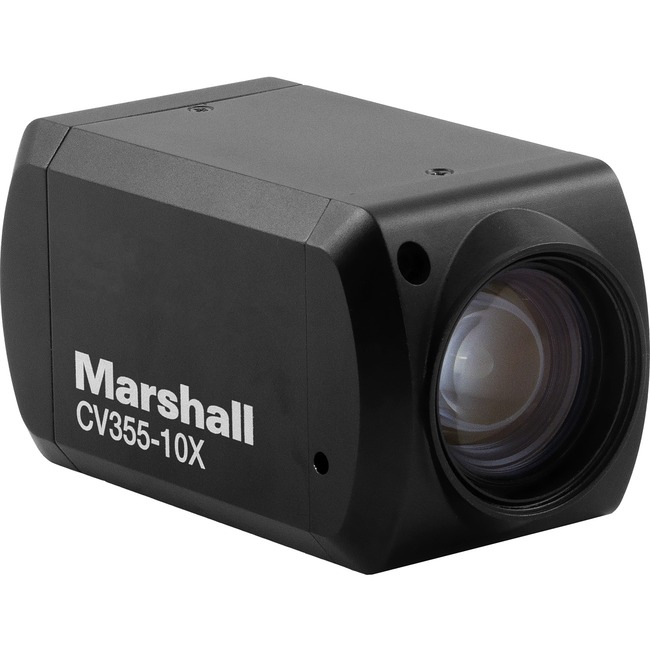

Marshall CV355-10X 2.1 Megapixel Full HD Surveillance Camera - Color - 1920 x 1080 - 4.70 mm- 47 mm Varifocal Lens - 10x Optical - CMOS - HDMI - Pole Mount, Gooseneck, Wall Mount
1920 x 1080 - 4.70 mm- 47 mm Varifocal Lens - 10x Optical - CMOS - HDMI - Pole Mount, Gooseneck, Wall Mount
| Analog Video Signal Format | 3G/HD-SDI |
| Field of View | 60 degrees (wide end) to 6 degrees (tele end) |
| Maximum Aperture | f/1.6 |
| Minimum Aperture | f/3 |
| Minimum Focal Length | 4.70 mm |
| Minimum Operating Temperature | 14°F (-10°C) |
| Remote Management | No |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Depth | 4.1" |
| Effective Camera Resolution | 2.1 Megapixel |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | 2D Digital Noise Reduction (2DNR) |
| Features | Privacy Masking |
| Features | White Balance |
| Features | Day/Night |
| Features | Defog |
| Features | Auto Gain Control |
| Features | 3D Noise Reduction |
| Features | Digital Image Stabilization |
| Height | 2.2" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV355-10X |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920x1080 at 60fps. Remote adjust and match settings include Iris WB Exposure Pedestal and many more over long distances or during setup with capable Auto settings that track environmental fluctuations. Unmatched Versatility
Presenting 3GSDI and HDMI simultaneous outputs remote adjustable optical zoom range and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance. Durable Build Construction
Constructed with a durable aluminum alloy body full-sized BNC and HDMI connections locking I/O cable carrying RS485/Audio/Power and side impact protection panels to secure cable connections. Universal Use Cases
Featuring a wide range of HD selections in 1920x1080i (interlaced) 1920x1080p and 1280x720p (progressive). Choose between 60 59.94 50 30 29.97 25 24 23.98 frames per second to capture any workflow or application in every region of the world. Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability durability flexibility and most importantly affordability with feature sets that matter to our industry partners. |
| Maximum Focal Length | 47 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Wall Mount |
| Mount Type | Gooseneck |
| Mount Type | Pole Mount |
| Optical zoom | 10x |
| Package Contents | - CV355-10X Compact 10X Camera (3GSDI & HDMI)
- Hirose Breakout Cable Included
- 12V Power Cable Included (7V~15V 4.5W max)
|
| Product Name | CV355-10X Compact 10X Camera (3GSDI & HDMI) |
| Product Type | Surveillance Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/10000 Second |
| UPC Alternates | 801813194029 |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| Weight (Approximate) | 12.80 oz |
