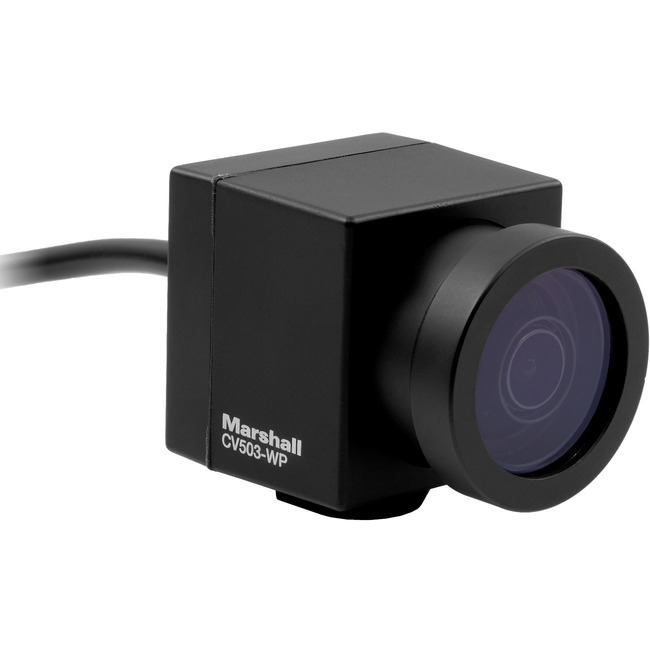

Marshall Miniature CV503-WP 2.5 Megapixel Indoor/Outdoor Full HD Surveillance Camera - Color - 1920 x 1080 - 3.60 mm - CMOS - IP67 - Dirt Resistant, Dust Resistant, Weather Proof, Snow Proof
1920 x 1080 - 3.60 mm - CMOS - IP67 - Dirt Resistant, Dust Resistant, Weather Proof, Snow Proof
| Analog Video Signal Format | 3G/HD-SDI |
| Field of View | 72°H |
| HD Recording | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Lens Mount Type | M12-mount |
| Remote Management | No |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Durability | Weather Proof |
| Durability | Dust Resistant |
| Durability | Dirt Resistant |
| Durability | Snow Proof |
| Effective Camera Resolution | 2.5 Megapixel |
| Features | Gain Control |
| Features | White Balance |
| Image Sensor Type | CMOS |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV503-WP |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | - Full-sized 3G/HDSDI (BNC) output
- 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
- Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)
- IP67-rated weatherproof housing wide lens cap for flexible wide shots
- Full-HD resolutions: 1920 x 1080p 1920 x 1080i and 1280 x 720p
- Frame rates: 60 59.94 50 30 29.97 25 24 23.98 fps
- Remote adjustable through RS485 (Visca) or OSD menu joystick
- Wide range of picture adjustment settings including white balance color gain control pedestal (blacks) white clip exposure gamma and more
The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses remote adjustable settings and protection from the elements in a compact IP67-rated housing.
Built around a next generation 2.5-Megapixel 1/2.86-inch sensor the CV503-WP delivers ultra-crisp clear progressive video up to 1920x1080p at 60fps and interlaced 1920x1080i at 60fps.
The CV503-WP utilizes a flexible 10' (3m) weatherproof cable that carries video control and power to a full-sized 3G/HD-SDI (BNC) output RS485 connection and locking 12V power connector. The CV503's threaded M12 lens mount offers a wide range of prime lens options.
The CV503-WP can capture detailed shots from impossible angles while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance red/blue exposure gain control pedestal (blacks) white clip gamma and more are delivered via common RS485 (Visca) or OSD menu joystick. CV503-WP Applications:
The CV503-WP is suitable for use in outdoor broadcast events and Pro AV workflows including live broadcast productions sportscast newscast reality television concerts corporate government military house of worship and many more. |
| Maximum Focal Length | 3.60 mm |
| Maximum frame rate | 60 fps |
| Maximum Video Resolution | 1920 x 1080 |
| Product Line | Miniature |
| Product Name | All-Weather HD Miniature Camera (3G/HDSDI) |
| Product Type | Surveillance Camera |
| Recording Formats | Full HD |
| UPC Alternates | 801813194036 |
| Weight (Approximate) | 4.94 oz |
