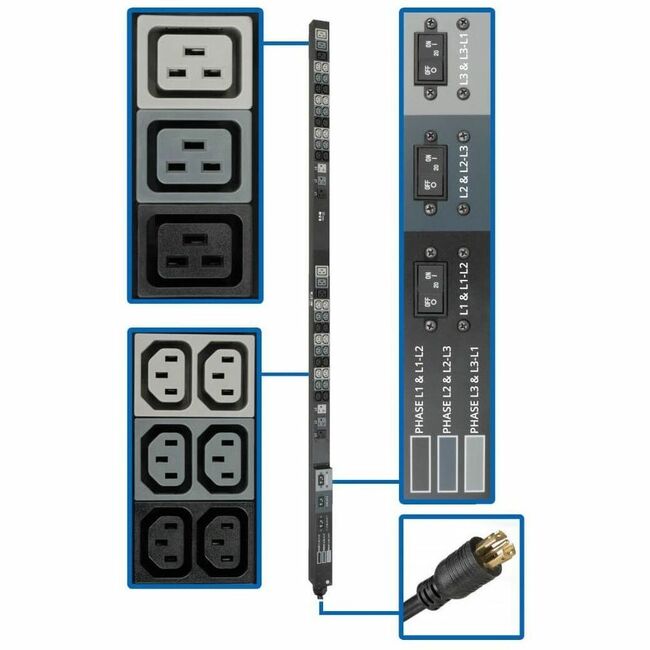

Tripp Lite PDU 3-Phase Basic 208/120V 8.6kW 36 C13 6 C19 6 5-15/20R 70in 0U - Basic - NEMA L21-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant
Basic - NEMA L21-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant
| Locking Receptacles | Cord Retention Bracket |
| Mounting Orientation | Vertical/Toolless |
| PDU Type | Basic |
| Phase | Three Phase |
| Power Rating (Watt) | 8600 W |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Detail | 6 x NEMA 5-15/20R |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 1.7" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input current | 24 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3V6L2130 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Three-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers computer rooms and network closets the PDU3V6L2130 features 36 C13 (208V) six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Three 20A circuit breakers one per output phase protect connected components from dangerous overloads. Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2130 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Mount Type | Rack-mountable |
| Output voltage | 120 V AC |
| Output voltage | 208 V AC |
| Package Contents | - PDU3V6L2130 48-Outlets PDU
- Plug Retention Brackets With Installation Hardware
- Rack-mounting Hardware
- Owner's Manual
|
| Plug/Connector Type | NEMA L21-30P |
| Product Name | PDU3V6L2130 48-Outlets PDU |
| Product Type | PDU |
| Protection Type | Circuit Protection |
| Protection Type | Overload Protection |
| Protection Type | Accidental Power Shutdown |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA 5-15/20R |
| UPC Alternates | 037332255686 |
| Weight (Approximate) | 13.90 lb |
| Width | 2.2" |
