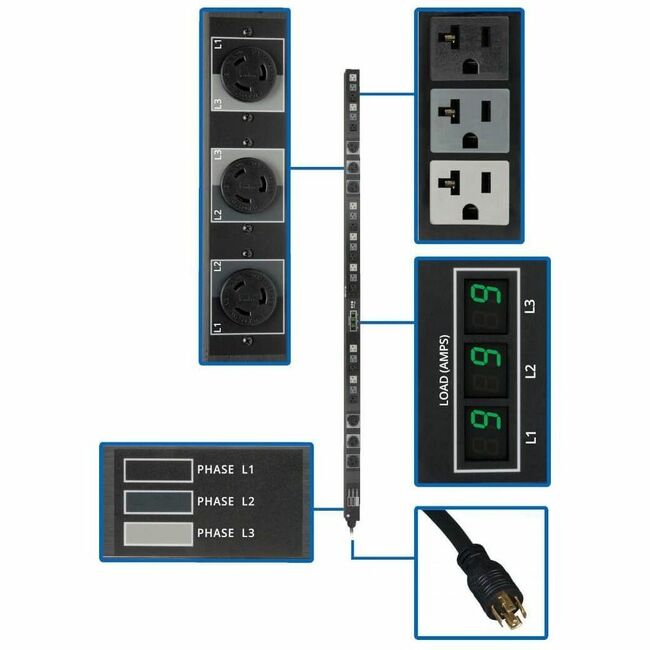

Tripp Lite PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM
| $103.15 Retail $915.40 |
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
Product Specifications
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 5700 W |
| Receptacle Detail | 21 x NEMA 5-15/20R |
| Receptacle Detail | 6 x NEMA L6-20R |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3MV6L2120B |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Mount Type | Rack-mountable |
| Output voltage | 120 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Plug/Connector Type | NEMA L21-20P |
| Product Name | 3-Phase Metered PDU |
| Product Series | Metered |
| Product Type | PDU |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA L6-20R |
| UPC Alternates | 037332163905 |
| Weight (Approximate) | 12.57 lb |
| Width | 1.9" |
