| Compatible Rack Unit | 1U |
| Number of Fibre Channel Ports | 24 |
| Brand Name | Cisco |
| Data transfer rate | 64 Gbit/s |
| Depth | 18" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | DS-C9124V-24PETK9 |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The next-generation Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch (Figure 1) provides high-speed Fibre Channel connectivity for all-flash arrays and high-performance hosts. This switch offers state-of-the-art analytics and telemetry capabilities built into its next-generation Application-Specific Integrated Circuit (ASIC) chipset. This switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (NVMe/FC) workloads whenever available without any hardware upgrade in the SAN. It empowers small midsize and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers providing the benefits of greater bandwidth scale and consolidation. Some of the main benefits for a small-scale Storage Area Network (SAN) are automatic zoning nonblocking forwarding and a single port group of 24 ports. Benefits for a mid- to large-size SAN include higher scale for Fibre Channel control-plane functions Virtual SANs fabric login (FLOGI) device alias and name server scale 24 ports of 64-Gbps non-oversubscribed line-rate ports bidirectional airflow and a fixed-form NVMe/FC-ready SAN switch with enhanced Buffer-to-Buffer (B2B) credits and capable of hardware-assisted Fibre Channel link encryption. Large-scale SAN architectures built with SAN core directors can expand 64-Gbps connectivity to the server rack using these switches configured in either switch mode or Network Port Virtualization (NPV) mode. Additionally the switch supports enhanced diagnostic features such as Inter-Switch Link (ISL) and Host-Bus-Adapter (HBA) diagnostics remote SFP (Read Diagnostic Parameter) diagnostics remote port beaconing (Link Cable Beaconing) and advanced reliability features such as link level Forward Error Correction (FEC) with HBA ports. Main features and benefits The main features of the Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch include:
|
| Product Model | 9124V |

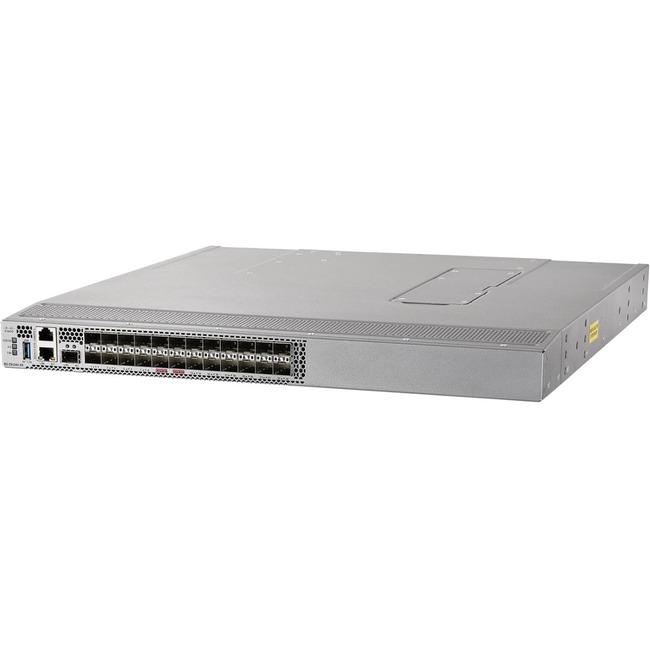

| Product Name | MDS 9124V 64-Gbps 24-Port Fibre Channel Switch (24 32G SW Optics Exhaust) |
| Product Series | 9000 |
| Product Type | Fibre Channel Switch |
| Weight (Approximate) | 18.74 lb |
| Width | 17.3" |
