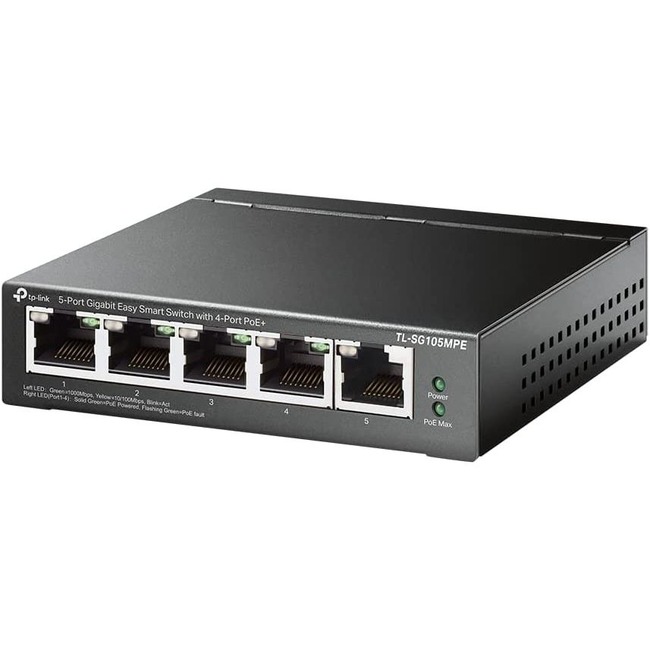

TP-Link TL-SG105MPE - 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ - Limited Lifetime Warranty
| $94.23 |
- Flexible Full Gigabit 5 Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 120W, together w/ 1x Gigabit Non-PoE Ports for high-speed connections. (Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.)
- Easy Smart Management: Simple setup and monitor your network with easy-to-use web-based management interface and smart configuration utility.
- Network Segmentation: Abundant VLAN features improve network security via traffic segmentation.
- PoE Auto Recovery: The switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting (Configuration Required).
- Plug and Play: Easy setup with no software installation or configuration needed.
- Advanc
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 4.34 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Compact, Wall Mountable - Lifetime Limited Warranty
Product Specifications
| Network (RJ-45) | Yes |
| PoE Budget | 120 W |
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Application/Usage | IP Phone |
| Application/Usage | Wireless Access Point |
| Application/Usage | IP Camera |
| Brand Name | TP-Link |
| Country of origin | Vietnam |
| Ethernet Technology | Gigabit Ethernet |
| Features | Fanless |
| Form factor | Compact |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Height | 1" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TLSG105MPE |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ Easy to Use Multi-Purpose PoE Switch with Powerful Performance TL-SG105MPE
Multiple Application Scenarios The TL-SG105MPE is fully compatible with PoE devices such as IP cameras access points and IP phones. It also works
Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget for the 4× gigabit PoE+ ports makes it has wide range of applications such as surveillance offices dormitories and small businesses. It is fully compatible with IP cameras access points IP phones computers printers and etc. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1Q |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Power consumption | 4.34 W |
| Power source | Power Adapter |
| Product Line | EasySmart |
| Product Model | TL-SG105MPE |
| Product Name | 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ |
| Product Type | Ethernet Switch |
| UPC Alternates | 840030708527 |
| Width | 3.9" |
