| Number of Total Expansion Slots | 4 |
| PoE Budget | 40 W |
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Brand Name | Intellinet |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Features | Fanless |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.1" |
| Input voltage | 220 V AC |
| Input voltage | 120 V AC |
| Length | 5.5" |
| Limited Warranty | 3 Year |
| Manufacturer | Intellinet Network Solutions |
| Manufacturer Part Number | 561792 |
| Manufacturer Website Address | http://www.intellinet-network.com |
| Marketing Information | Save installation time and money with this 5-Port Gigabit Power over Ethernet Switch The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges VoIP phones IP video cameras and more while delivering network speeds up to 1000 Mbps. Power over Ethernet IEEE 802.3at The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported and thanks to its short circuit overload and high-voltage protection function your equipment is well-protected.
|
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3af |
| Package Contents |
|
| Package type | Retail |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE Network |
| Power source | Power Adapter |

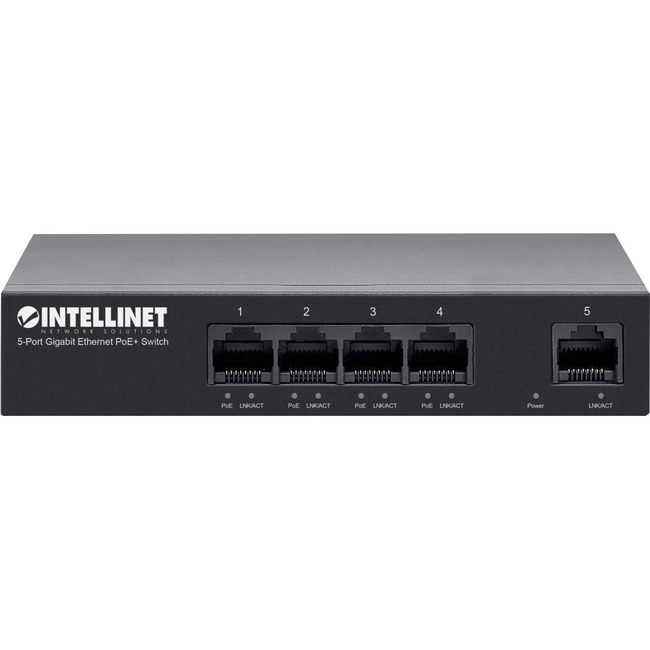

| Product Name | 5-Port Gigabit Ethernet PoE+ Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 766623561792 |
| Weight (Approximate) | 12.13 oz |
| Width | 3" |
