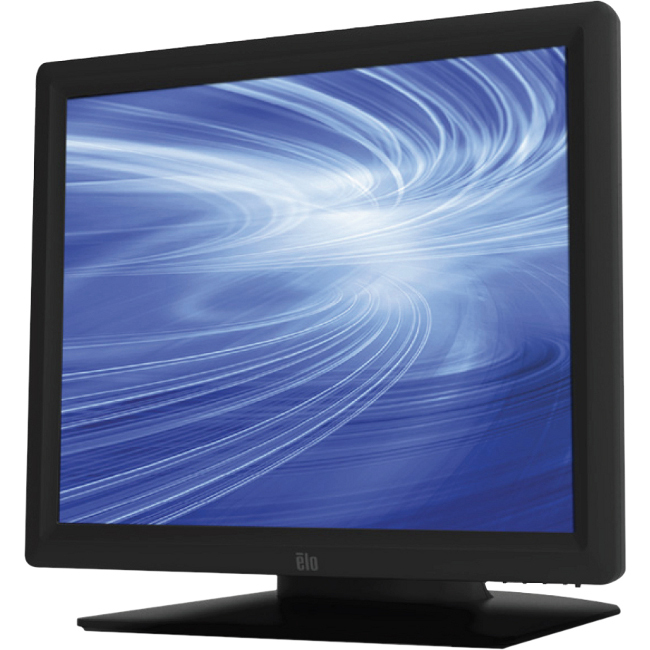

Elo 1717L 17" LCD Touchscreen Monitor - 5:4 - 7.80 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
| Depth with Stand | 8.46" |
| Height with Stand | 15.43" |
| Touchscreen Type | 5-wire Resistive |
| Vertical Viewing Angle | 160° |
| VESA Mount Standard | 75 x 75 |
| Width with Stand | 14.21" |
| Aspect ratio | 5:4 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness | 250 Nit |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 800:1 |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | China RoHS |
| Environmentally Friendly | Yes |
| Features | Security Lock |
| Height | 15.4" |
| Horizontal Viewing Angle | 170° |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Elo Touch Solutions Inc |
| Manufacturer Part Number | E649473 |
| Manufacturer Website Address | http://www.elotouch.com |
| Marketing Information | The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale point-of-information point-of-service loyalty systems and shelf-level and countertop interactive digital signage are found.
The 1717L is offered with AccuTouch five-wire resistive IntelliTouch surface acoustic wave or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids food and grease. IntelliTouch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user providing an elegant integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly lightweight and uses less power with state-of-the- art LED backlights in the display panels. |
| Maximum resolution | 1280 x 1024 |
| Mount Type | Pole Mount |
| Mount Type | Desk Mountable |
| Mount Type | Wall Mountable |
| Off-Mode Power Consumption | 1.40 W |
| Operating Power Consumption | 20 W |
| Package Contents | - 1717L Rev B 17-inch Multifunction Desktop
- Power Cable
- Detachable Touch and Video Cables
|
| Platform Supported | PC |
| Product color | Black |
| Product Model | 1717L |
| Product Name | 1717L Rev B 17-inch Multifunction Desktop |
| Product Type | LCD Touchscreen Monitor |
| Response time | 7.80 ms |
| Screen Mode | SXGA |
| Screen Surface | Anti-glare |
| Standard Refresh Rate | 75 Hz |
| Standby Power Consumption | 1.80 W |
| UPC Alternates | 012456005584 741149334839 818239680289 834619001291 |
| Viewable Screen Size | 17" |
| Weight (Approximate) | 11.90 lb |
