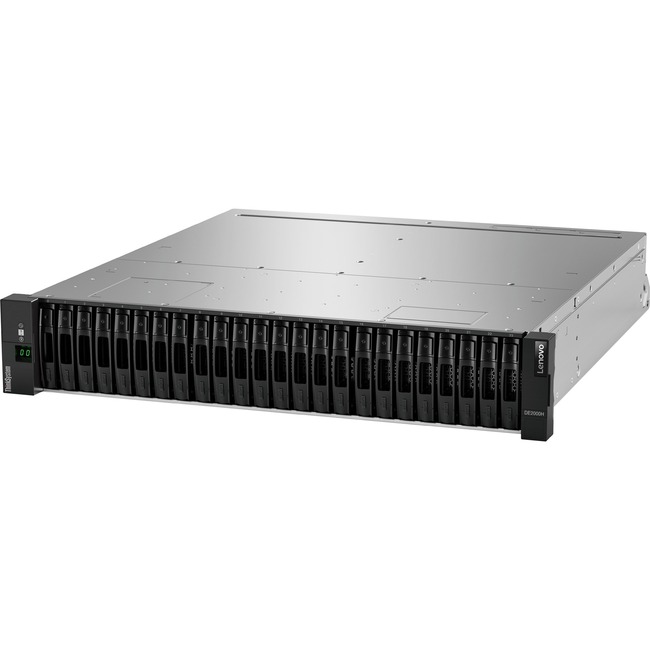

Lenovo ThinkSystem DE2000H DAS/SAN Storage System - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 2U - Rack-mountable
24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 2U - Rack-mountable
| Fibre Channel | Yes |
| Maximum Power Supply Wattage | 913 W |
| Number of Controllers | 2 |
| Number of Hard Drives Installed | 0 |
| Number of SAS Ports (External) | 4 |
| SSD Cache Capacity | 16 GB |
| Brand Name | Lenovo |
| Depth | 21.8" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.3" |
| Host interface | 12Gb/s SAS |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y71A00QWW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DE2000H is a low-cost hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE2000H Hybrid Storage Array its key features and specifications components and options and configuration guidelines. This guide is intended for technical specialists sales specialists sales engineers and IT architects who want to learn more about the ThinkSystem DE2000H Hybrid Storage Array and consider its use in their solutions. |
| Number of Network (RJ-45) Ports | 1 |
| Number of Total Expansion Bays | 24 |
| Plug/Connector Type | C14 |
| Product Family | ThinkSystem DE |
| Product Line | ThinkSystem |
| Product Model | DE2000H |
| Product Name | ThinkSystem DE2000H DAS/SAN Storage System |
| Product Series | DE |
| Product Type | DAS/SAN Storage System |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | FCP |
| Protocols | SMI-S |
| Protocols | SSL |
| Protocols | SSH |
| Rack Height | 2U |
| RAID Levels | 0 1 3 5 6 10 |
| Weight (Approximate) | 60.85 lb |
| Width | 17.7" |
