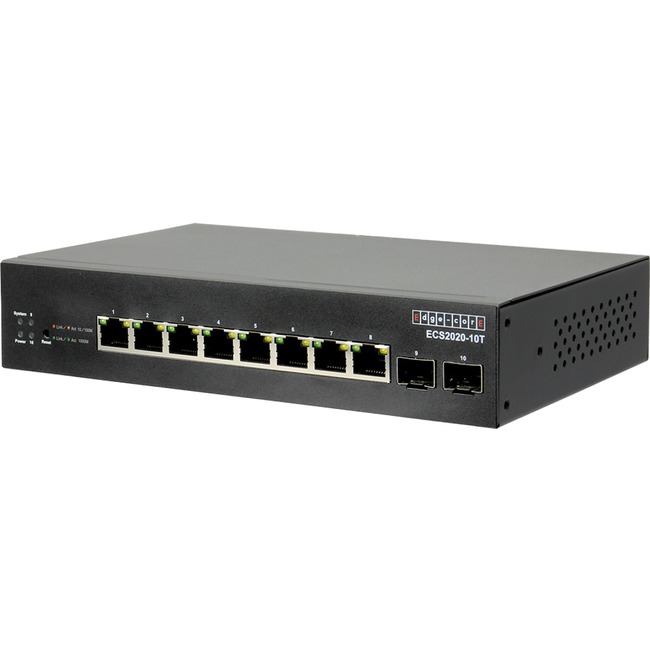

Edge-Core ECS2020-10T Ethernet Switch - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX/LHX/ZX - 3 Layer Supported - Modular - 2 SFP Slots - 10.90 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - 2 Year Limited Warranty
8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX/LHX/ZX - 3 Layer Supported - Modular - 2 SFP Slots - 10.90 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - 2 Year Limited Warranty
| Network (RJ-45) | Yes |
| Number of Total Expansion Slots | 2 |
| PoE (RJ-45) Port | No |
| Total Number of Network Ports | 8 |
| Brand Name | Edge-Core |
| Depth | 5.2" |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Limited Warranty | 2 Year |
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | ECS2020-10T |
| Manufacturer Website Address | http://www.edge-core.com |
| Marketing Information | The ECS2020 Series is Edgecore's latest generation cost-effective web-smart switch solution.
The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6.
The ECS2020 Series offers complete PoE solutions from 70 W to 190 W. All the switches are rack mountable. The ECS2020-10P is a fanless design PoE switch that supports up to 4 ports at 15.4 W or 2 ports at 30 W to meet the increasing power demands of users. The ECS2020-28P delivers a default 190 W of PoE power to support future IP cameras IP telephones or access points. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-SX/LX/LHX/ZX |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1D |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Power consumption | 10.90 W |
| Power source | Power Supply |
| Product Name | ECS2020-10T Ethernet Switch |
| Product Series | ECS2020 |
| Product Type | Ethernet Switch |
| Weight (Approximate) | 1.79 lb |
| Width | 8.5" |
