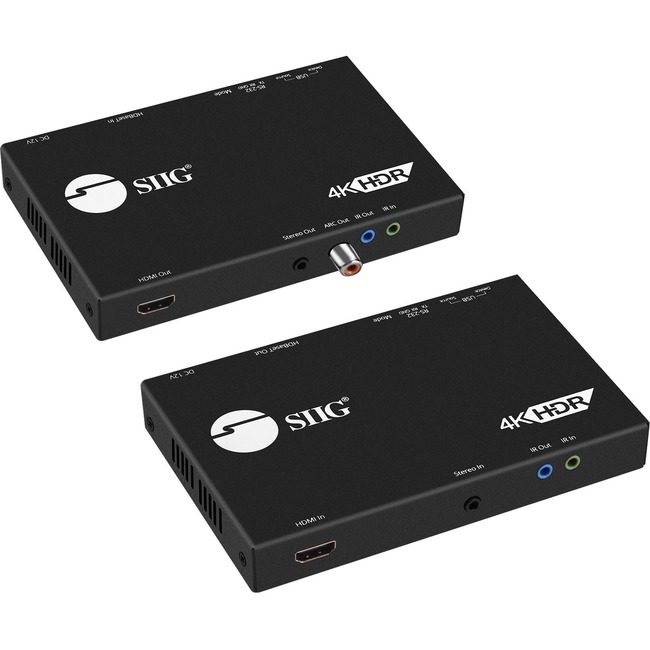

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR

Name: SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR
Brand: SIIG, Inc
SKU: 8JX684
Price: 397.89 USD

New

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR - 100M Over CAT5e/6 - Bi-directional IR Sensors - TAA Compliant

0 Review(s) Item: CE-H23411-S1 | By: SIIG | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Compliant with HDMI 2.0 and HDCP 2.0
Supports EDID by pass, CEC, Deep Color
Supports 3840x2160@60Hz 4:4:4 8bit
Supports 3840x2160@60Hz HDR 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Video latency: <20µs
Auto skew equalization
Full Duplex RS-232 control up to 115200 bps through connector
Full Duplex USB 2.0 data transmission up to 480Mbps
Audio support: DTS-HD Master Audio and Dolby True HD

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR - 100M Over CAT5e/6 - Bi-directional IR Sensors - TAA Compliant
100M Over CAT5e/6 - Bi-directional IR Sensors - TAA Compliant

Product Specifications

Transmitter Depth	5.91"
Transmitter Height	0.79"
Transmitter Weight (Approximate)	1.74 lb
Transmitter Width	3.74"
Brand Name	SIIG
Connectivity technology	Wired
Country of origin	Taiwan
Environmental Certification	RoHS
Environmentally Friendly	Yes
Form factor	Wall Mountable
Graphics Modes	4K
Limited Warranty	3 Year
Manufacturer	SIIG Inc

Manufacturer Part Number	CE-H23411-S1
Manufacturer Website Address	http://www.siig.com
Marketing Information	Extends HDMI audio and video signals USB 2.0 RS232 control IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission DTS-HD Master Audio and Dolby TrueHD high bit rate audio support Supports USB 2.0 data transmission between the receiver and transmitter Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use Slim profile design easily adopts into versatile application environment wall mountable housing for easy and varied installation requirements More from the Manufacturer
Maximum Operating Distance	328.08 ft
Maximum Video Resolution	3840 x 2160
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Number of Network (RJ-45) Ports	2
Number of USB Ports	4
Package Contents	1 x Transmitter (TX) 1 x Receiver (RX) Power Adapter IR Blaster Extension Cable & IR Receiver Extension Cable 4 x Mounting Ears & Screw kit (8+4) 2 x Terminal Block User Reference Guide
Product Name	4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR
Product Type	Video Extender Transmitter/Receiver
Twisted Pair Cable Standard	Category 6
UPC Alternates	662774041162 800100318797 818215010376 818215976894 995476424163
