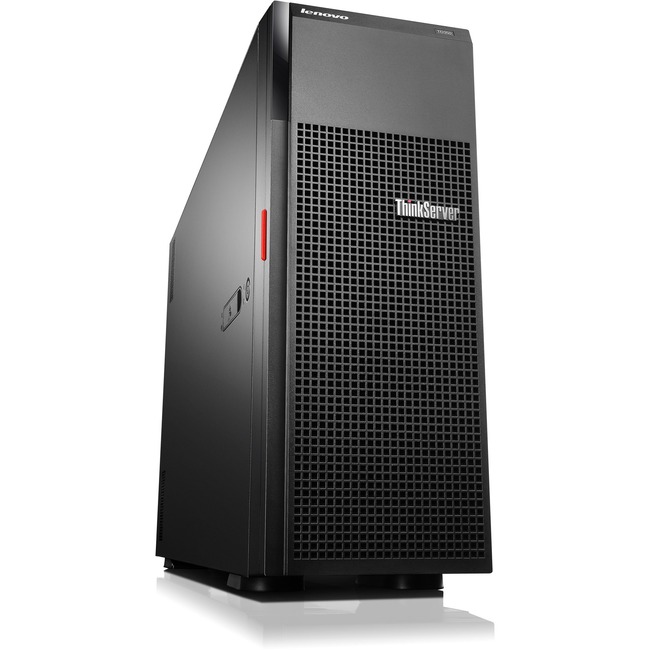

Lenovo ThinkServer TD350 70DG000BUX Server - 1 x Intel Xeon E5-2650 v3 2.30 GHz - 8 GB RAM - 12Gb/s SAS Controller - Intel C612 Chip - 2 Processor Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - ASPEED AST2400 Up to 16 MB Graphic Card - DVD-Writer - Gigabit Ethernet - 15 x LFF Bay(s) - 750 W
Intel C612 Chip - 2 Processor Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - ASPEED AST2400 Up to 16 MB Graphic Card - DVD-Writer - Gigabit Ethernet - 15 x LFF Bay(s) - 750 W
| 64-bit Processing | Yes |
| 64-bit Processing | Yes |
| Cache | 25 MB |
| Cache | 25 MB |
| Chipset | Intel C612 |
| Chipset | Intel C612 |
| Chipset Model | C612 |
| Chipset Model | C612 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Graphics Controller Model | AST2400 |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Capacity | 16 MB |
| Maximum Power Supply Wattage | 750 W |
| Maximum Power Supply Wattage | 750 W |
| Maximum Turbo Speed | 3 GHz |
| Maximum Turbo Speed | 3 GHz |
| Memory Standard | DDR4-2133/PC4-17000 |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of 3.5" Bays | 15 |
| Number of 3.5" Bays | 15 |
| Number of External 5.25" Bays | 2 |
| Number of External 5.25" Bays | 2 |
| Number of Total Expansion Slots | 7 |
| Number of Total Expansion Slots | 7 |
| Optical Drive Type | DVD-Writer |
| Optical Drive Type | DVD-Writer |
| Processor Core | Deca-core (10 Core) |
| Processor Core | Deca-core (10 Core) |
| QuickPath Interconnect | 9.60 GT/s |
| QuickPath Interconnect | 9.60 GT/s |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Compatibility | - Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Windows Small Business Server 2011
- Red Hat Enterprise Linux 6.5
- SUSE Linux Enterprise Server 11
- VMware vSphere (ESXi) 5.5 U2
|
| Compatibility | - Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Windows Small Business Server 2011
- Red Hat Enterprise Linux 6.5
- SUSE Linux Enterprise Server 11
- VMware vSphere (ESXi) 5.5 U2
|
| Controller Type | 12Gb/s SAS |
| Controller Type | 12Gb/s SAS |
| Depth | 27" |
| Depth | 27" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Height | 18" |
| Height | 18" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 70DG000BUX |
| Manufacturer Part Number | 70DG000BUX |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Compact Tower. Uncompromising Performance. The ThinkServer TD350 provides full enterprise capacity and performance in a compact 4U dual-processor tower server that's packed with the power of Intel® Xeon® processing technology. |
| Marketing Information | Compact Tower. Uncompromising Performance. The ThinkServer TD350 provides full enterprise capacity and performance in a compact 4U dual-processor tower server that's packed with the power of Intel® Xeon® processing technology. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Processors Installed | 1 |
| Number of Processors Installed | 1 |
| Number of Total Expansion Bays | 17 |
| Number of Total Expansion Bays | 17 |
| Number of Total Memory Slots | 16 |
| Number of Total Memory Slots | 16 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Operating System | No |
| Operating System | No |
| Processor Manufacturer | Intel |
| Processor Manufacturer | Intel |
| Processor model | E5-2650 v3 |
| Processor model | E5-2650 v3 |
| Processor Speed | 2.30 GHz |
| Processor Speed | 2.30 GHz |
| Processor Type | Xeon |
| Processor Type | Xeon |
| Product Family | ThinkServer TD350 |
| Product Family | ThinkServer TD350 |
| Product Line | ThinkServer |
| Product Line | ThinkServer |
| Product Name | ThinkServer TD350 70DG000BUX Server |
| Product Name | ThinkServer TD350 70DG000BUX Server |
| Product Series | TD350 |
| Product Series | TD350 |
| Product Type | Server |
| Product Type | Server |
| RAID Levels | 0 1 5 6 10 50 60 |
| RAID Levels | 0 1 5 6 10 50 60 |
| Standard Memory | 8 GB |
| Standard Memory | 8 GB |
| Total Number of USB Ports | 6 |
| Total Number of USB Ports | 6 |
| UPC Alternates | 888965031983 |
| UPC Alternates | 888965031983 |
| Weight (Approximate) | 91 lb |
| Weight (Approximate) | 91 lb |
| Width | 6.8" |
| Width | 6.8" |
