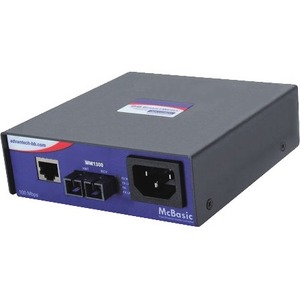

Advantech 10/100Mbps and 10/100/1000Mbps Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX, 100Base-SX, 100Base-TX - 3.11 Mile - AC - Standalone, DIN Rail Mountable, Desktop, Wall Mountable
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - DuplexSC Port - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX, 100Base-SX, 100Base-TX - 3.11 Mile - AC - Standalone, DIN Rail Mountable, Desktop, Wall Mountable
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1300 nm |
| Maximum Distance Supported | 3.11 Mile |
| Number of PoE (RJ-45) Ports | 1 |
| SC Port Type | Duplex |
| Application/Usage | Network |
| Brand Name | Advantech |
| Depth | 4.9" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Form factor | Standalone |
| Form factor | DIN Rail Mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.6" |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer Part Number | IMC-450-MM-A |
| Manufacturer Website Address | http://www.advantech.com |
| Marketing Information | The IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. They can be installed anywhere a network connection is required. In addition these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.
The IMC-450 series provides one 10/100Mbps copper UTP port and one fiber port. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port. They are available in an SFP form factor as well as for fixed-fiber in single-mode and multi-mode. Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface. LFPT can be enabled vis a dip switch on the front of the unit. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-SX |
| Network Technology | 100Base-FX |
| Power source | AC |
| Product Name | 10/100Mbps and 10/100/1000Mbps Media Converter |
| Product Series | IMC-450 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Weight (Approximate) | 1.30 lb |
| Width | 4.8" |
