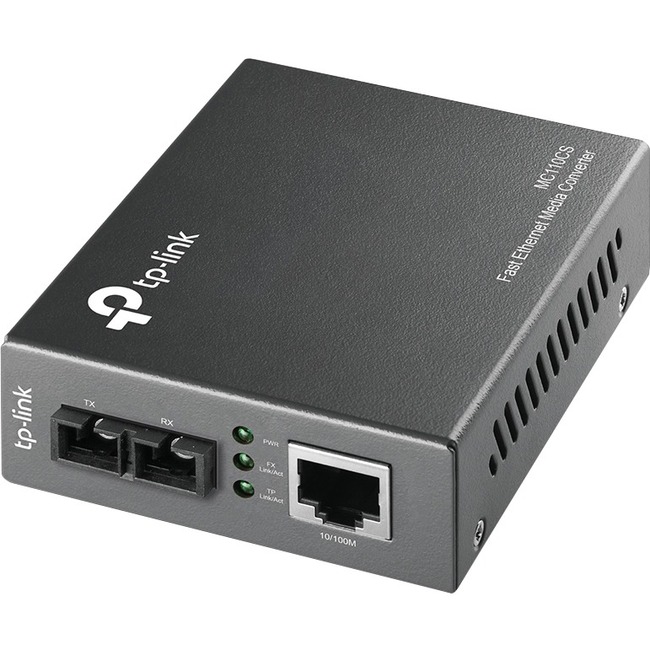

TP-LINK MC110CS Media Converter, 10/100Mbps RJ45 to 100M single-mode SC fiber, up to 1.2miles, chassis mountable
| $20.60 Retail $20.99 |
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 12.5 miles (20km)
Fiber to Ethernet Converter - 10/100Mbps RJ45 Port to 100Base-FX Single-Mode Fiber
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 12.43 Mile |
| Maximum Distance Supported | 12.43 Mile |
| Additional Information | Wavelength: 1310 nm |
| Additional Information | Wavelength: 1310 nm |
| Brand Name | TP-Link |
| Brand Name | TP-Link |
| Country of origin | China |
| Country of origin | China |
| Depth | 2.9" |
| Depth | 2.9" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | External |
| Form factor | External |
| Height | 1.1" |
| Height | 1.1" |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | MC110CS |
| Manufacturer Part Number | MC110CS |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. |
| Marketing Information | The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100Base-TX |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-FX |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Package Contents |
|
| Power consumption | 2.40 W |
| Power consumption | 2.40 W |
| Power source | Power Adapter |
| Power source | Power Adapter |
| Product Name | MC110CS Fast Ethernet Media Converter |
| Product Name | MC110CS Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 112840374064 801096850766 807030489559 818244281464 845973030407 |
| UPC Alternates | 112840374064 801096850766 807030489559 818244281464 845973030407 |
| UPC Alternates | 112840374064 801096850766 818244281464 845973030407 |
| Width | 3.7" |
| Width | 3.7" |
