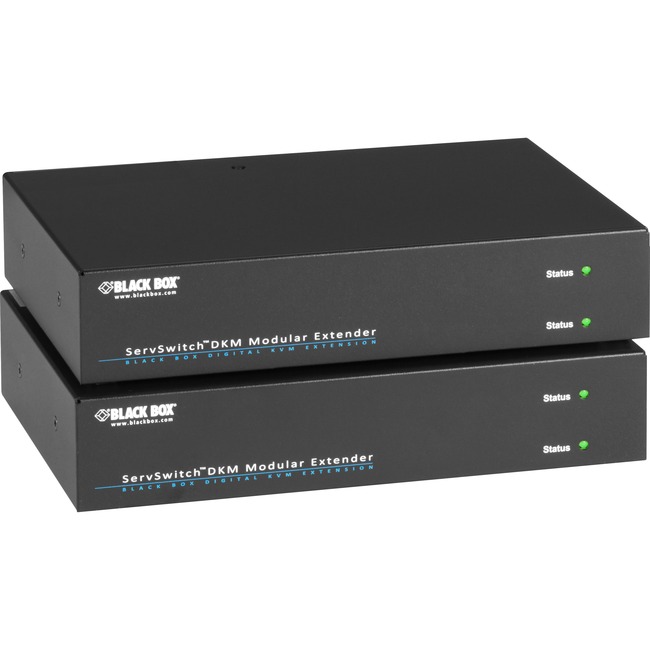

Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber - 1 Computer(s) - 1 Local User(s) - 16404.20 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 120 V AC, 240 V AC Input Voltage - TAA Compliant
1 Computer(s) - 1 Local User(s) - 16404.20 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 120 V AC, 240 V AC Input Voltage - TAA Compliant
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Graphic Mode | 4K |
| Input voltage | 240 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AMS9204A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - This product is built to order (parts below are completely assembled prior to shipment).
- Includes external power supply.
This DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations which makes it easy to customize for your specific application.
These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup call our FREE Tech Support. Supports integrated DisplayPort digital audio. Audio format PCM can be transferred with a sample rate up to 96 Hz via the DisplayPort interface.
Supports up to 2 daughter cards. |
| Maximum Operating Distance | 16404.20 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Number of Computers Supported | 1 |
| Number of USB Ports | 5 |
| Package Contents | - DKM FX Extender Modular Housing 2-Slot Chassis (ACXMODH2R-P-R2)
- DKM FX Transmitter Modular Interface Card (ACX2MT-DP4KHS-SM)
- DKM FX Receiver Modular Interface Card (ACX2MR-DP4KHS-SM)
|
| Product Name | KVM Extender - DisplayPort 1.2 4K60 USB HID Single-mode Fiber |
| Product Series | DKM FX |
| Product Type | KVM Extender |
| UPC Alternates | 822088125433 |
