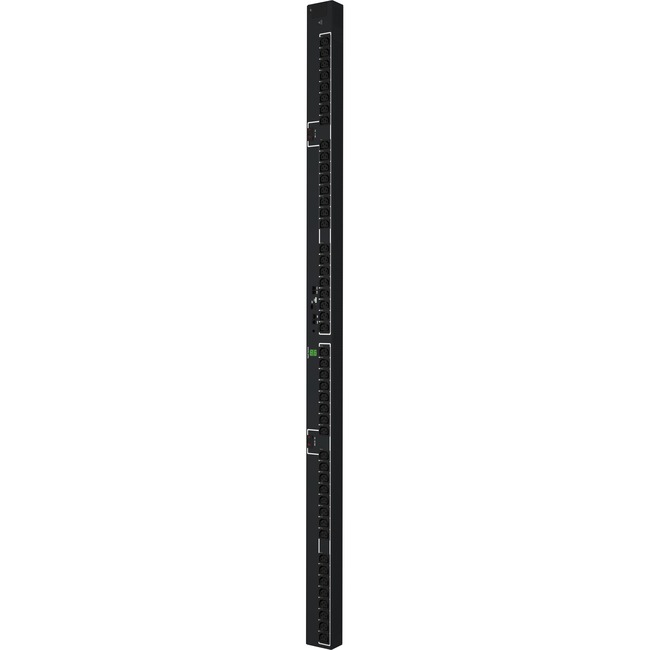

Server Technology PRO2 STV-4511K 48-Outlets PDU - Switched - IEC 2P+PE 6Hr 230V/32A - 48 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
Switched - IEC 2P+PE 6Hr 230V/32A - 48 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Switched |
| PDU Type | Switched |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (Watt) | 7300 W |
| Power Rating (Watt) | 7300 W |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Brand Name | Server Technology |
| Brand Name | Server Technology |
| Depth | 2.3" |
| Depth | 2.3" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 69" |
| Height | 69" |
| Input current | 32 A |
| Input current | 32 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | - SSH
- SMTP
- Syslog
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Management | - SSH
- SMTP
- Syslog
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Manufacturer | Server Technology Inc |
| Manufacturer | Server Technology Inc |
| Manufacturer Part Number | STV-4511K |
| Manufacturer Part Number | STV-4511K |
| Manufacturer Website Address | http://www.servertech.com |
| Manufacturer Website Address | http://www.servertech.com |
| Marketing Information | The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring allowing IT personnel todetermine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input. Thesepower data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLIinterfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched"Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration |
| Marketing Information | The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring allowing IT personnel todetermine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input. Thesepower data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLIinterfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched"Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Package Contents | - PRO2 STV-4511K 48-Outlets PDU
- Buttons
|
| Package Contents | - PRO2 STV-4511K 48-Outlets PDU
- Buttons
|
| Plug/Connector Type | IEC 2P+PE 6Hr 230V/32A |
| Plug/Connector Type | IEC 2P+PE 6Hr 230V/32A |
| Product Name | PRO2 STV-4511K 48-Outlets PDU |
| Product Name | PRO2 STV-4511K 48-Outlets PDU |
| Product Series | PRO2 |
| Product Series | PRO2 |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Double Pole |
| Protection Type | Overcurrent Protection |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Protection Type | Double Pole |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Width | 3.3" |
| Width | 3.3" |
