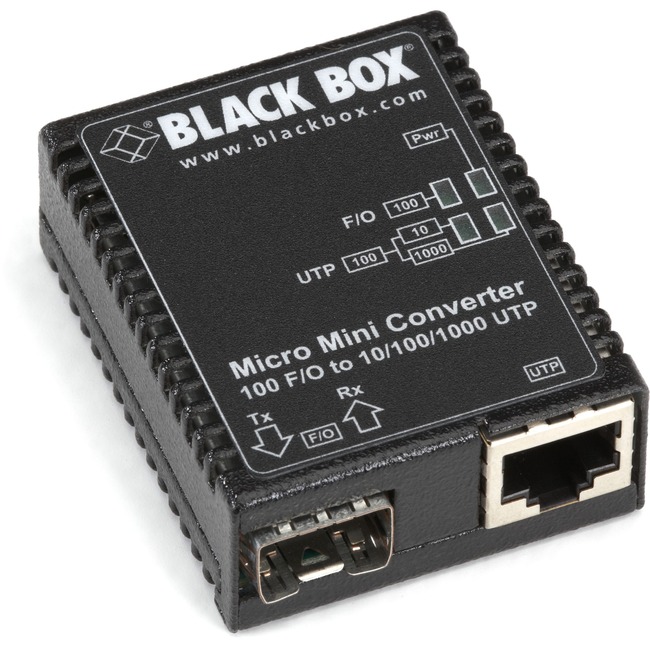

Black Box Micro Mini LMC400A Transceiver/Media Converter - 1 x Network (RJ-45) - Fast Ethernet, Gigabit Ethernet - 10/100/1000Base-TX, 100Base-FX - 1 x Expansion Slots - SFP - 1 x SFP Slots - Desktop, Wall Mountable - TAA Compliant
1 x Network (RJ-45) - Fast Ethernet, Gigabit Ethernet - 10/100/1000Base-TX, 100Base-FX - 1 x Expansion Slots - SFP - 1 x SFP Slots - Desktop, Wall Mountable - TAA Compliant
| Number of Total Expansion Slots | 1 |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 2.3" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Height | 0.8" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC400A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Ultra compact weighing only 2.5 ounces.SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.UTP port supports 10/100/1000BASE-T.Supports Jumbo Ethernet frames up to 10240 bytes.LED indicators for power UTP and fiber status.Bring fiber to the desktop conveniently and cost-effectively. The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter accepts SFPs for connection to a variety of Fast Ethernet fiber types. Use it with Black Box 155-Mbps SFPs (LFP401-LFP404) or any other standard 155-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port the media converter shuts down automatically when you turn off the computer which saves energy. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 100Base-FX |
| Package Contents | - Micro Mini LMC400A Transceiver/Media Converter
- Power Adapter
|
| Power source | AC Adapter |
| Product Line | Micro Mini |
| Product Name | Micro Mini LMC400A Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| UPC Alternates | 013269144385 822088109501 881119386854 |
| USB | No |
| Weight (Approximate) | 2.50 oz |
| Width | 1.8" |
