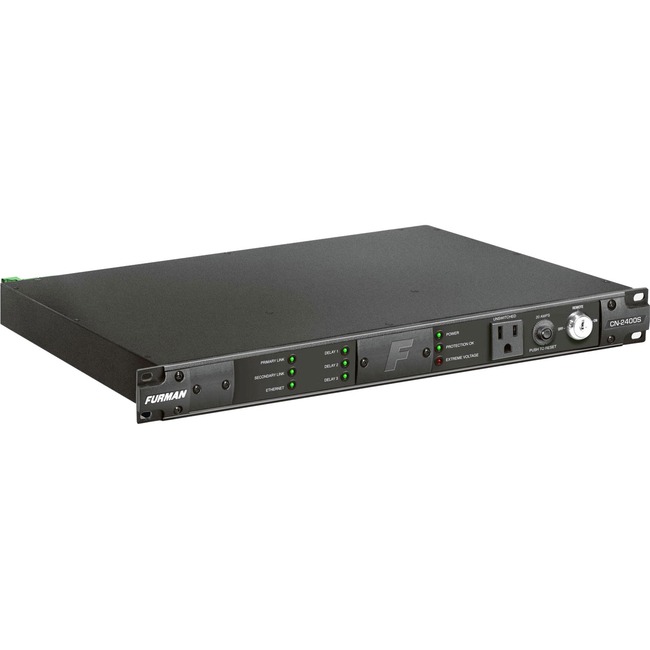

Furman 20A SmartSequencing Power Conditioner
| $466.40 Retail $824.95 |
- Surge Protection - Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
- Noise Filtration - Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
- Voltage Protection - Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
- SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
- Diagnostic Lights - Diagnostic lights provide valuable system information including power quality, "Protectection Ok" indicator, and Extreme Voltage indicator.
- Remote Access (RS-232) - RS-232 compatibility & command set provide integration with control systems, open source and control programming.
- BlueBOLT Compatible® - BlueBOLT provides remote access to reboot c
AC Noise, Over Voltage, Surge protection - NEMA 5-20R, NEMA 5-15R - 120 V AC Input
Product Specifications
| Receptacles Detail | 8 x NEMA 5-20R |
| Receptacles Detail | 1 x NEMA 5-15R |
| Depth | 10.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.8" |
| Input voltage | 120 V AC |
| Limited Warranty | 15 Year |
| Manufacturer | Furman |
| Manufacturer Part Number | CN-2400S |
| Manufacturer Website Address | http://www.furmansound.com |
| Marketing Information | Furman CN-2400S SmartSequencing with advanced AC protection and noise filtration. Designed for Commercial A/V Installers the CN-2400S combines robust control capabilities via SmartSequencing™ Technology advanced AC protection AC noise filtration and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required sold separately). The new CN-2400S is one of the first products to feature Furman's SmartSequencing™ technology which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key even by nontechnical personnel. SmartSequencing's bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1000 feet with backwards compatibility with Furman's legacy sequencers. In addition the CN-2400S offers robust control options equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit allowing it to be controlled programmed and monitored from a smartphone tablet PC or any Web-enabled device via Telnet direct HTTP: connection or Panamax/Furman's BlueBOLT®-hosted remote power and energy management platform. |
| Product Line | Contractor |
| Product Name | 20A SmartSequencing Power Conditioner |
| Product Type | Line Conditioner |
| Protection Type | AC Noise |
| Protection Type | Over Voltage |
| Protection Type | Surge |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | NEMA 5-20R |
| UPC Alternates | 654061028468 |
| Weight (Approximate) | 12 lb |
| Width | 17" |
