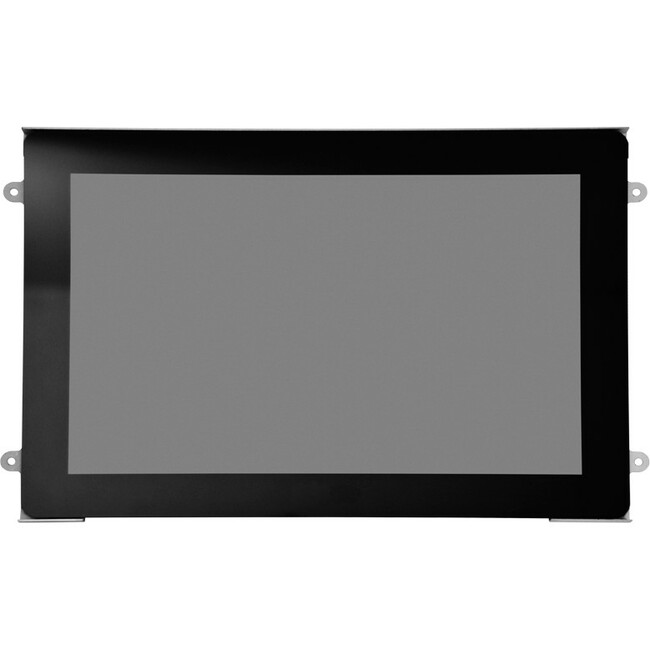

Mimo Monitors UM-1080C-OF 10.1" Open-frame LCD Touchscreen Monitor - 16:10 - 14 ms
| $371.21 |
- Pixel arrangement: RGB vertical stripe
- Driver element L a-si TFT active matrix
- Display colors: 262,144
- Surface treatment: Hard coating (3H), anti-glare
- Capacitive Touch (UM-1080CH-OF)
- Non-Touch (UM-1080-OF)
- Rear 4 point mounting for secure installation
- Utilizes HDMI input for video and USB or 5v DC for power
10" Class - CapacitiveMulti-touch Screen - 1280 x 800 - WXGA - 800:1 - 350 Nit - Speakers - USB - RoHS - 1 Year
Product Specifications
| Touchscreen Type | Capacitive |
| Aspect ratio | 16:10 |
| Brand Name | Mimo Monitors |
| Brightness | 350 Nit |
| Contrast Ratio | 800:1 |
| Country of origin | South Korea |
| Depth | 0.5" |
| Environmental Certification | RoHS |
| Height | 5.9" |
| Horizontal Viewing Angle | 170° |
| Limited Warranty | 1 Year |
| Manufacturer | Mimo Monitors Inc |
| Manufacturer Part Number | UM-1080C-OF |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Marketing Information | Multi Point Capacitive Touch Open Frame 10.1" IPS USB Monitor The UM-1080C-OF/UM-1080CH-OF is our widest viewing angle open frame 10.1" monitor. The UM-1080C-OF/UM-1080CH-OF is a 10.1" open frame capacitive touch monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The UM-1080C-OF/UM-1080CH-OF open frame capacitive touch display is designed to provide the most cost effective solutions for consumer retail POS and hospitality markets. Utilizing the same single cable USB display technology as our line of displays the UM-1080C-OF is our widest viewing angle 10.1" monitor. The screen can display in either landscape or portrait orientations and has nearly 180 degree viewing angles all while sending video touch and power over a single USB connection. |
| Maximum resolution | 1280 x 800 |
| Product Name | 10.1" Capacitive Touch Open Frame Display |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Response time | 14 ms |
| Screen Mode | WXGA |
| Screen Size Class | 10" |
| Speakers | Yes |
| UPC Alternates | 601393907350 810020600360 818214888211 |
| Viewable Screen Size | 10.1" |
| Width | 9" |
