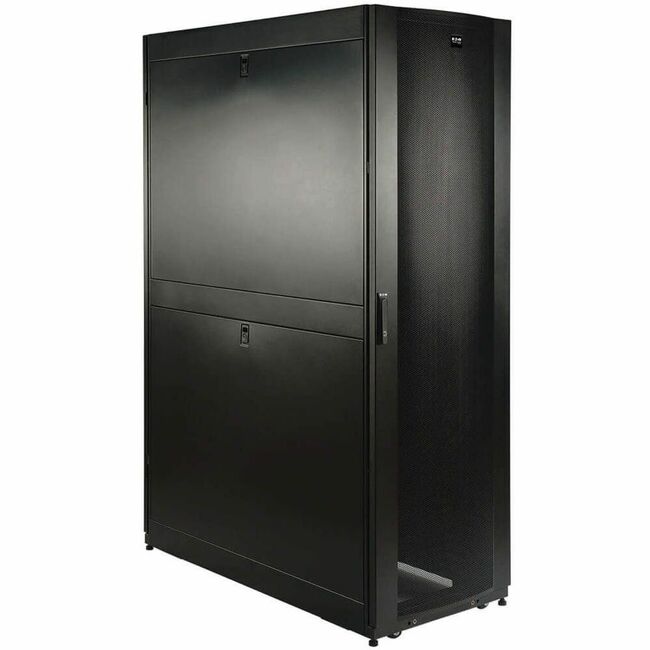

Tripp Lite Rack Enclosure Server Cabinet 45U Extra-Deep 48in Doors & Panels

45U rack cabinet houses organizes and secures extra-deep standard-width rack equipment in highdensity server and IT networking areas.

Extra-Deep Server Cabinet Accommodates 45U of Standard-Width Rack Equipment
Designed for network wiring closets retail locations classrooms back offices and other areas with essential rack-mount IT equipment this SmartRack® 45U rack enclosure is 48 inches (1219 millimeters) deep. This allows high-density equipment installations extra space for cable management and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish the SR45UBDP48 has a maximum stationary load capacity of 3000 pounds (1361 kilograms) and a maximum rolling load capacity of 2250 pounds (1021 kilograms).

Keeps Important Equipment Secure and Easy to Access
The reversible front door split rear doors and half-size side panels lock securely to help prevent damage tampering or theft. The doors side panels and top panel are designed for quick release making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak.

Easy Enclosure Deployment and Equipment Installation
This 45U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level smooth stable surface and through a standard seven-foot doorway into position where it can be stabilized by adjusting the levelers. Four mounting rails adjust in quarter-inch increments from four to 42 inches. Two rails also support toolless 0U mounting for quick installation of up to four compatible PDUs and vertical cable managers to help cut down on clutter.

Designed for Baying Multiple Enclosures in a Row
Built-in baying brackets and removable side panels allow the combination of two or more rack cabinets in a row for cost-effective orderly and efficient expansion. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data-center floor tiles.

Meets Payment Card Industry Standards
The SR45UBDP48 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process store and/or transmit credit card information.

• SR45UBDP48 45U Server Rack
• 4 X Side Panels
• 4 X Side Panel Locks
• 2 X Keys
• 5O X M6 Screws
• 50 X M6 Washers
• 50 X M6 Cage Nuts
• Owner's manual
