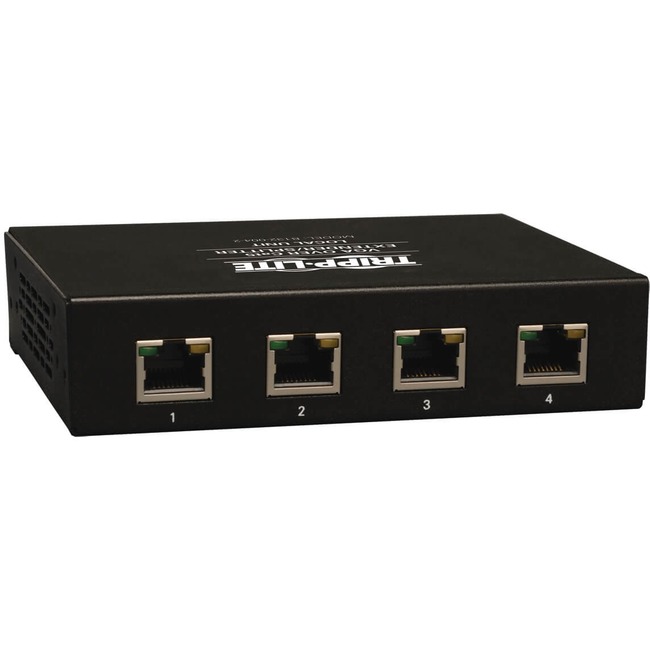

Tripp Lite VGA over Cat5/Cat6 Video Extender 4-Port Transmitter Splitter HD15 RJ45 TAA

Features

• Splits a single VGA signal into 5 (1 local 4 remote)
• Increase the number of displays to up to 25 (1 local 24 remote) by daisychaining up to six B132-004-2 units together
• A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
• Extends a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
• EDID copy feature ensures optimal display compatibility
• Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location
• A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
• For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K
• Includes mounting hardwarethat allows unit to be wallmounted rackmounted or pole mounted.
• Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
• Ideal for digital signage situations such as retail schools churches etc.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

• VGA over Cat5 Extender 4-Port Transmitter
• 1 ft. VGA daisychain cable
• Mounting hardware
• External Power Supply (Input: 100-240V 50/60Hz 1.5A Output: 12.6V 3A)
• Owner's Manual
