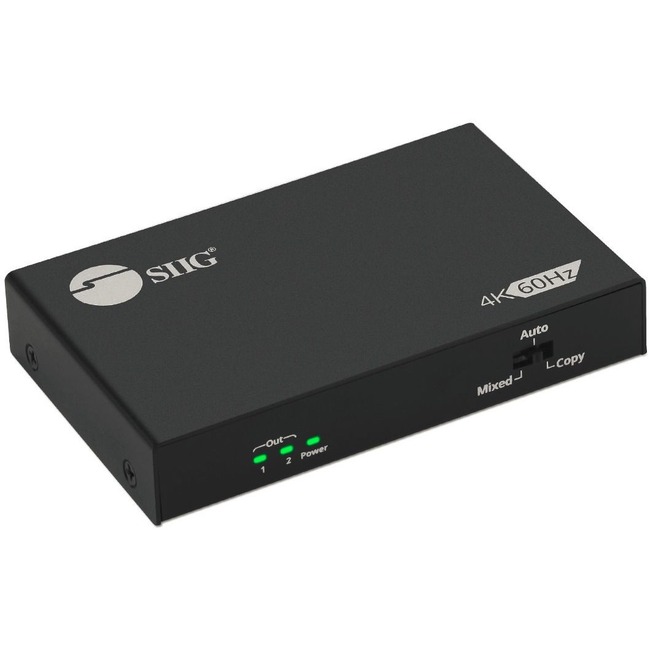

SIIG 2 Port HDMI 2.0 4K @60Hz HDR Splitter with EDID & Downscaler

Distributes HDMI video/audio signals from one HDMI source to two HDMI displays with EDID management and video downscaling while maintaining signal quality

• Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit) 3D HDR 36-bits Deep Color Dolby Vision and LPCM 7.1 Dolby TrueHD Dolby digital Plus Dolby Atmos and DTS-HD Master Audio
• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• High quality materials with metal housing extend the stability and durability allowing for long hours of operation.
• Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
• Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life span
• Individual LED indicators for power and signal allow for easy and quick status recognition

Notes:

• 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• EDID Copy and Auto mode supports 4K downscaling to 1080p
• For HDCP 2.2 protected 4K source signals if the TV supports HDCP 2.2 it will display at 4K resolution otherwise the TV will display at 1080p
• HDR Dolby Vision Dolby Atmos and 7.1ch supported via EDID Copy mode only

Distributes HDMI video/audio signals from one HDMI source to two HDMI displays with EDID management and video downscaling while maintaining signal quality

• Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit) 3D HDR 36-bits Deep Color Dolby Vision and LPCM 7.1 Dolby TrueHD Dolby digital Plus Dolby Atmos and DTS-HD Master Audio
• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• High quality materials with metal housing extend the stability and durability allowing for long hours of operation.
• Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
• Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life span
• Individual LED indicators for power and signal allow for easy and quick status recognition

Notes:

• 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
• EDID Copy and Auto mode supports 4K downscaling to 1080p
• For HDCP 2.2 protected 4K source signals if the TV supports HDCP 2.2 it will display at 4K resolution otherwise the TV will display at 1080p
• HDR Dolby Vision Dolby Atmos and 7.1ch supported via EDID Copy mode only

• 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
• Power Adapter with Micro USB Cable
• Quick Start Guide

• 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
• Power Adapter with Micro USB Cable
• Quick Start Guide
