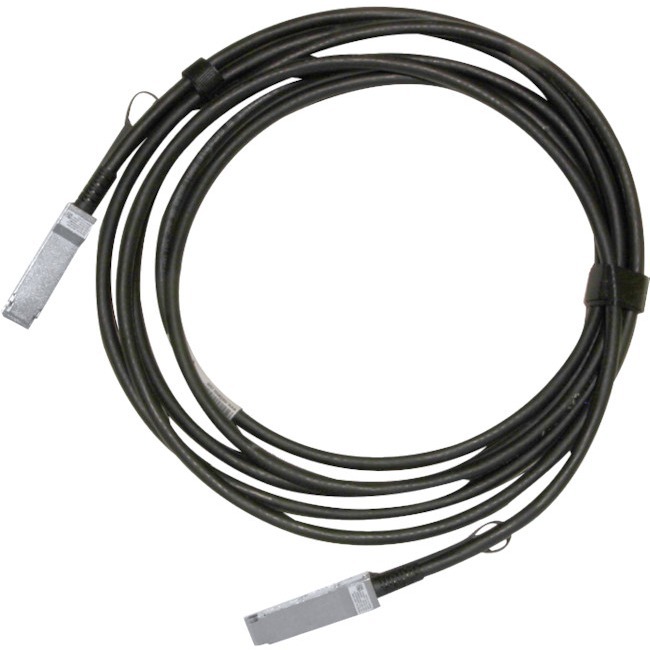

Mellanox DAC Cable Ethernet 100GbE QSFP28 3m
| $147.22 Retail $219.00 |
- For exceptional quality, upright compatibility and reliability use this network cable
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- For extra fire safety, the cable features a halogen-free jacket
- Fully compatible with network devices
9.84 ft Twinaxial Network Cable for Network Device - First End: 1 x SFF-8665 QSFP28 Network - Second End: 1 x SFF-8665 QSFP28 Network - 100 Gbit/s - LSZH - 30 AWG - Black
Product Specifications
| Connector on First End Details | 1 x SFF-8665 QSFP28 Network |
| Connector Type on First End | SFF-8665 QSFP28 Network |
| Product Material | Copper |
| American Wire Gauge | 30 AWG |
| Brand Name | Mellanox |
| Cable length | 9.84 ft |
| Cable type | Twinaxial |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Lead-free |
| Features | Bendable |
| Features | Halogen Free |
| Features | Passive |
| Jacket Type | LSZH |
| Limited Warranty | 1 Year |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MCP1600-C003E30L |
| Manufacturer Website Address | http://www.nvidia.com |
| Marketing Information | NVIDIA MCP1600-C003E30L Direct Attach Copper Cable Ethernet 100GbE QSFP28 3m Black 30AWG CA-L100GbE QSFP28 Direct Attach Copper Cable NVIDIA's direct attach copper (DAC) cables are high speed cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications. NVIDIA QSFP28 passive copper cable contains four high-speed copper pairs each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system. NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled(1). For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. Highlights
|
| Product color | Black |
| Product Name | DAC Cable Ethernet 100GbE QSFP28 3m |
| Product Type | Network Cable |
