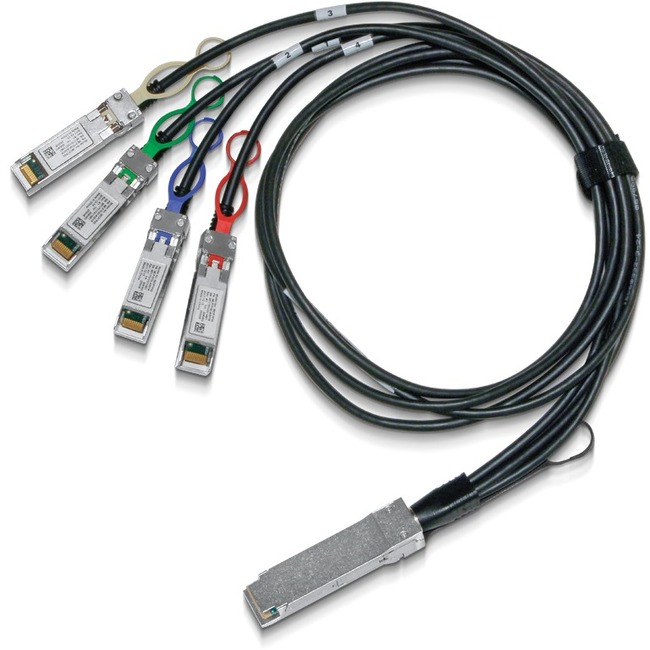

Mellanox 100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable - 9.84 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Male Network - Second End: 4 x SFP28 Male Network - 100 Gbit/s - Splitter Cable - 30 AWG
9.84 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Male Network - Second End: 4 x SFP28 Male Network - 100 Gbit/s - Splitter Cable - 30 AWG
| Jacket Material | Low Smoke Zero Halogen |
| Product Material | Copper |
| American Wire Gauge | 30 AWG |
| Brand Name | Mellanox |
| Cable Characteristic | Splitter Cable |
| Cable length | 9.84 ft |
| Cable type | QSFP28/SFP28 |
| Connector on First End | 1 x QSFP28 Male Network |
| Connector on First End | QSFP28 Male Network |
| Connector on Second End | 4 x SFP28 Male Network |
| Connector on Second End | SFP28 Male Network |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Features | Halogen Free |
| Features | Lead-free |
| Features | Passive |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MCP7F00-A003R30L |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Mellanox MCP7F00-A0xxRyyz DAC splitter cables are a high speed cost-effective 100GbE to 4 x 25GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. |
| Product Line | LinkX |
| Product Name | 100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable |
| Product Type | Network Cable |
| UPC Alternates | 997249201049 |
