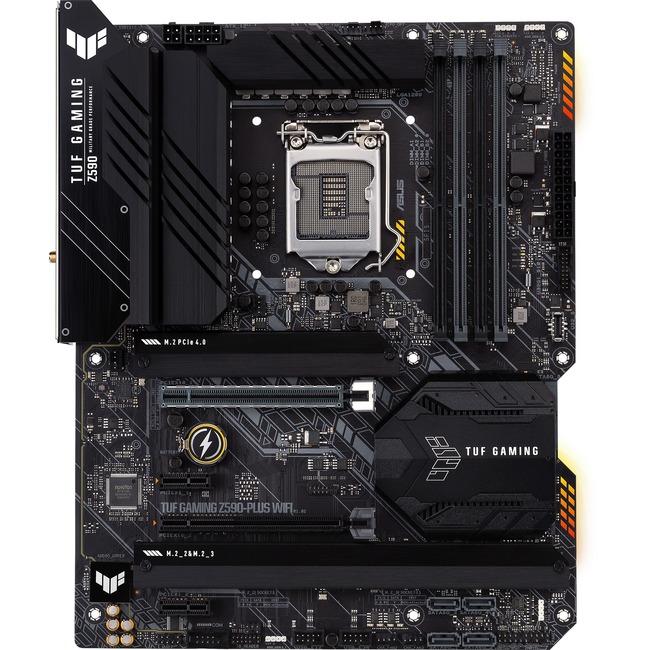

TUF GAMING Z590-PLUS Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z590 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4500 MHz |
| Memory Speed Supported | 5133 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 4700 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 2666 MHz |
| Number of M.2 Interfaces | 3 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Processor Supported | Celeron |
| Processor Supported | Core i3 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i9 |
| S/PDIF | Yes |
| Total Processor Supported | 1 |
| Audio Channels | 7.1 |
| Brand Name | TUF |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUFGAMINGZ590PLUS |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel® Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages PCIe® 4.0 three M.2 slots Intel® 2.5 Gb Ethernet HDMI® DisplayPort™ USB 3.2 Gen 2x2 Type-C® SATA 6 Gbps front panel USB 3.2 Gen 1 Type C® Thunderbolt™ 4 support and Aura Sync RGB lighting - Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Core™ processors
- Enhanced power solution: 14+2 DrMOS power stages six-layer PCB ProCool sockets military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink PCH fanless heatsink M.2 heatsink hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe® 4.0 USB 3.2 Gen 2x2 Type-C® front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
- Made for online gaming: Intel® 2.5 Gb Ethernet TUF LANGuard and TurboLAN technology
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line-out and 103 dB SNR for line-in
Durable. Stable. Reliable. ASUS TUF GAMING Z590-PLUS takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components an upgraded power solution and a comprehensive cooling system this motherboard offers rock-solid stable performance for marathon gaming. Aesthetically TUF GAMING Z590-PLUS sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors plus support for faster memory and storage TUF GAMING Z590 series motherboards are the perfect foundation for your next high-core-count battle rig. DrMOS The onboard VRM of TUF GAMING Z590 series motherboards utilize 14+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package delivering the power and efficiency that 11th Gen Intel Core processors demand. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up and configure just the way you want -even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity. Build with Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts such as PC cases power supplies CPU coolers memory kits and more. With more partnerships and components being added regularly the TUF Gaming Alliance will continue to grow even stronger. Immersive Gaming TUF GAMING Z590 series motherboards provide a complete high-performance gaming package with a long list of features to improve your experience including ultrafast networking for smoother online gameplay pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Product Model | GAMING Z590-PLUS |
| Product Name | GAMING Z590-PLUS Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Total Number of USB Ports | 7 |
| UPC Alternates | 195553111263 |
| Width | 12" |
