Black Box Industrial Ethernet Extender Local Unit - G.SHDSL 2-Wire, 15-Mbps

• Compliance FCC Part 15A; EMC Directive 89/336/EEC; Low-Voltage Directive 73/23/EEC
• Data Rate From 192 kbps to 15.3 Mbps in 64-kbps steps
• Distance (Maximum) 6.4 mi. (10.4 km)
• Humidity -5 to 95% non-condensing
• Interface Ethernet: 10BASE-T/100BASE-TX
• LAN Protocols Transparent to high layers
• Line Coding TC-PAM 16 to TC-PAM 128
• Line Interface Transformer coupled 1500 VAC isolation
• Management DIP switch; Telnet console
• Operating temperature -40° to +185° F (-40 to +85° C)
• Power Input: 90-260 VAC 50-60 Hz autosensing external adapter with plug clips for US EU UK; 0.8A@5VDC
• Transmission Line Single twisted pair

Ethernet extension especially in harsh environments is now incredibly easy and economical. You can connect industrial Ethernet devices and remote LANs over your existing CATx voice-grade twisted pair cable at speeds and distances you didn't think possible.

Get the best possible speed
Make connections at speeds up to 15 Mbps and across distances ranging from 0 to 6.4 miles (10km). An auto-rate feature senses the ideal speed/distance configuration and ensures that you achieve the highest possible speed on each connection. While you can configure your desired rate via DIP switches or Telnet if conditions aren't ideal the extender will automatically set the rate.

Withstands temperature extremes

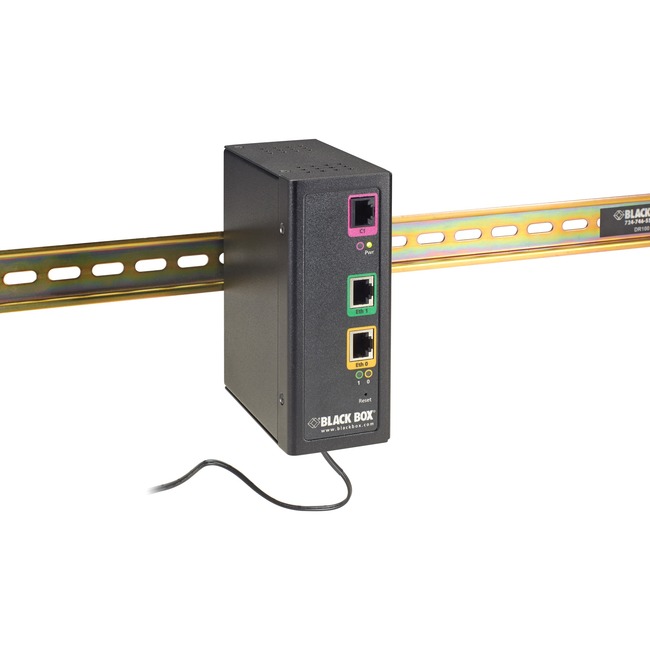

This rugged extender can withstand temperature extremes of -40° F to 185° F so you can use it to connect Ethernet-enabled industrial devices such as sensors cameras security equipment etc. It's ideal for use in transportation systems manufacturing and other harsh remote environments. The aluminum enclosure meets IP40 specifications and a DIN rail clip is included. The unit is designed to be used in a controlled environment and not to be exposed to the weather.

Use in pairs
This local unit is designed to be used in pairs with the remote unit. For multidrop runs choose the multidrop unit.

Quadruple your connections
The remote extender features a built-in four-port auto-sensing 10-/100BASE-TX Ethernet switch so you can connect four devices instead of one. A built-in auto-MDIX (automatic medium-dependent interface crossover) means you can use either straight-through or crossover cable whichever is handy to connect your Ethernet devices.

Easy setup
Plug-and-play means that you'll be up and running in seconds. The auto-MDIX also detects the polarity of the cable on each port and automatically configures the signaling to match. There's no user configuration on your part whatsoever.

The extender operates at layer 2 and transparently passes all higher-layer protocols including VLAN tagging multicast addressing VPN pass-through for IPsec and all IP-video compression schemes. All common industrial protocols are also transparently supported including MODBUS/TCP and PROFINET IO. In addition the extender features automatic learning aging and filtering to keep local traffic local ensuring efficient utilization of the long-range link.

LB532A-L Distance Chart

Distance on CAT5/5e/6 UTP 24 AWG (0.5 mm)

Far reach

The extender has a max reach of 30 km.
