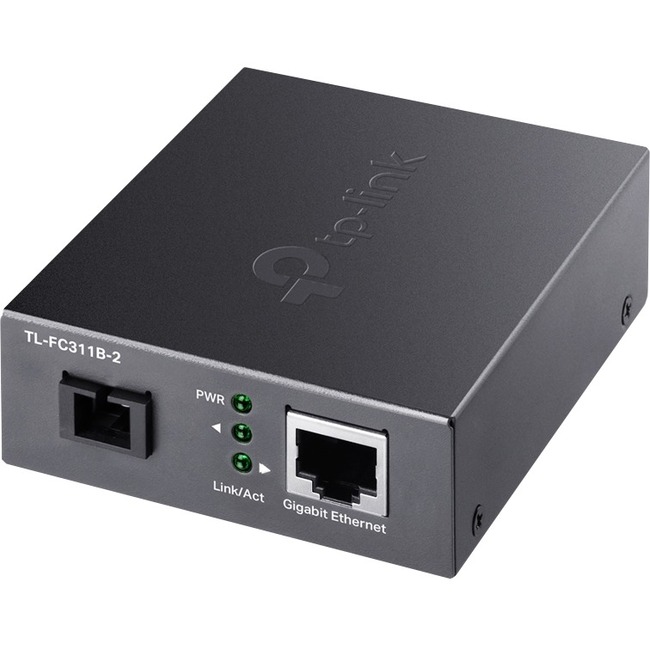

TP-Link Gigabit WDM Media Converter
| $16.67 Retail $16.99 |
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-T
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1550 nm |
| Maximum Distance Supported | 1.24 Mile |
| Network (RJ-45) | Yes |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 2.9" |
| Ethernet Technology | Gigabit Ethernet |
| Height | 1.1" |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-FC311B-2 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does TL-FC311B-2 is a gigabit media converter providing a gigabit RJ-45 port and a gigabit SC fiber port which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. TL-FC311B-2 adopts WDM (wavelength division multiplexing) technology helping send and receive data at a distance of up to 2 km with only a single mode fiber which saves half of the cable deployment cost for customers. TL-FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore the terminal device used in conjunction with the TL-FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-2 is one of the products that can cooperate with TL-FC311B-2. Besides this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Power source | AC Adapter |
| Product Name | Gigabit WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Width | 3.7" |
