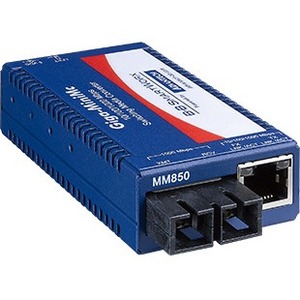

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter with LFPT - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX - Rail-mountable, Wall Mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX - Rail-mountable, Wall Mountable
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 6.21 Mile |
| SC Port Type | Duplex |
| Brand Name | B+B SmartWorx |
| Country of origin | Taiwan |
| Depth | 3.4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Height | 0.8" |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer Part Number | IMC-370-SM-PS-A |
| Manufacturer Website Address | http://www.advantech.com |
| Marketing Information | The IMC-370 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-370 series serves as a media and data rate converter that have NEMA TS2 rating making it ideal for use in traffic applications.
The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370I supports plug-n-play functionality auto negotiation and AutoCross operation. It can be powered by AC/DC power dual USB cable or via installation in the centrallypowered media converter chassis. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-TX |
| Package Contents | - 10/100/1000Mbps Miniature Media Converter with LFPT
- Power Adapter
|
| Packaged Quantity | 1 |
| Power source | AC Adapter |
| Product Name | 10/100/1000Mbps Miniature Media Converter with LFPT |
| Product Series | IMC-370 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Weight (Approximate) | 11.18 oz |
| Width | 1.8" |
