Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM

Name: Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM
Brand: Tripp Lite by Eaton
SKU: 8JT723
Price: 254.71 USD
Availability: InStock

New

0 Review(s) Item: PDUV20HVL6-72 | By: Tripp Lite | 10 In Stock

$254.71 Retail $413.72

Ideal no-frills PDU for telecom, security, audio/video and other network applications

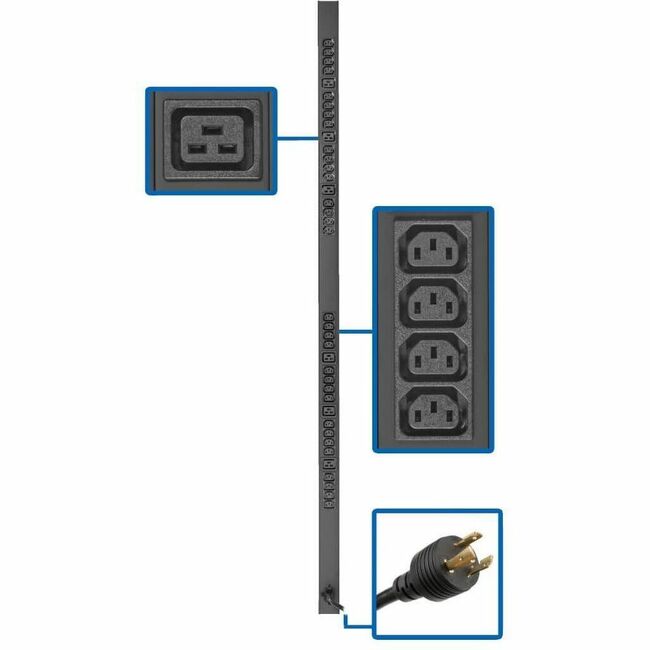

32 C13 and 6 C19 outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
10 ft. cord with NEMA L6-20P single-phase input connects to compatible power source
63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
5-year limited warranty

More Details

100% Quality & Money Back Guaranteed!

You may be also interested

Description
Reviews

Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM - Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable
Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable

Product Specifications

Mounting Orientation	Vertical/Toolless
Mounting Orientation	Vertical/Toolless
PDU Type	Basic
PDU Type	Basic
Phase	Single Phase
Phase	Single Phase
Power Rating (Watt)	3840 W
Power Rating (Watt)	3840 W
Receptacle Detail	32 x IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	32 x IEC 60320 C13
Additional Information	ENVIRONMENTAL Storage Temperature Range: -30°C to +50°C (-22°F to +122°F) Relative Humidity: 5-95% non-condensing Operating Elevation: (ft.) 0-10000 Operating Elevation: (m) 0-3000 USER INTERFACE ALERTS & CONTROLS Switches: n/a
Additional Information	ENVIRONMENTAL Storage Temperature Range: -30°C to +50°C (-22°F to +122°F) Relative Humidity: 5-95% non-condensing Operating Elevation: (ft.) 0-10000 Operating Elevation: (m) 0-3000 USER INTERFACE ALERTS & CONTROLS Switches: n/a
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Certifications & Standards	STANDARDS & COMPLIANCE Certifications: Tested to UL60950-1 (USA Canada) NOM (Mexico) Certification Details: Series Number (s) AGIB6672; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013
Certifications & Standards	STANDARDS & COMPLIANCE Certifications: Tested to UL60950-1 (USA Canada) NOM (Mexico) Certification Details: Series Number (s) AGIB6672; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013
Cord Length	10 ft
Cord Length	10 ft
Country of origin	China
Country of origin	China
Depth	3.8"
Depth	3.8"
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Height	63.8"
Height	63.8"
Input current	20 A
Input current	20 A
Input voltage	230 V AC
Input voltage	230 V AC
Limited Warranty	5 Year
Limited Warranty	5 Year
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUV20HVL6-72

Manufacturer Part Number	PDUV20HVL6-72
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers computer rooms and network closets the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Versatile Installation Options Give You Plenty of Choices The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall counter or other flat secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered. Typical Applications Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications Package Includes PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU (38) Plug-lock inserts Mounting hardware Owner's manual
Marketing Information	Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers computer rooms and network closets the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Versatile Installation Options Give You Plenty of Choices The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall counter or other flat secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered. Typical Applications Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications Package Includes PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU (38) Plug-lock inserts Mounting hardware Owner's manual
Mount Type	Wall-mountable
Mount Type	Rack-mountable
Mount Type	Rack-mountable
Mount Type	Wall-mountable
Output voltage	240 V AC
Output voltage	240 V AC
Output voltage	208 V AC
Output voltage	200 V AC
Output voltage	208 V AC
Output voltage	200 V AC
Package Contents	PDUV20HVL6-72 38-Outlets PDU 38 x Plug-lock Inserts Mounting Hardware Owner's Manual
Package Contents	PDUV20HVL6-72 38-Outlets PDU 38 x Plug-lock Inserts Mounting Hardware Owner's Manual
Placement	Under-counter
Placement	Under-counter
Plug/Connector Type	NEMA L6-20P
Plug/Connector Type	NEMA L6-20P
Product Name	PDUV20HVL6-72 38-Outlets PDU
Product Name	PDUV20HVL6-72 38-Outlets PDU
Product Type	PDU
Product Type	PDU
Protection Type	Accidental Power Shutdown
Protection Type	Accidental Power Shutdown
Rack Height	0U
Rack Height	0U
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
UPC Alternates	037332255945
UPC Alternates	037332255945
Weight (Approximate)	8 lb
Weight (Approximate)	8 lb
Width	2.3"
Width	2.3"
