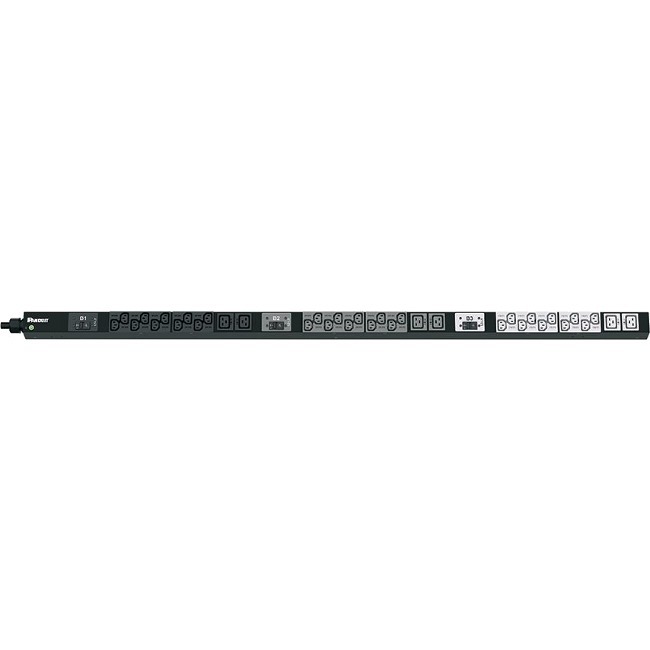

Panduit P36B22M Vertical Basic Power Distribution Unit - Basic - NEMA L15-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical - Rack-mountable
Basic - NEMA L15-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical - Rack-mountable
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Basic |
| PDU Type | Basic |
| Phase | Three Phase |
| Phase | Three Phase |
| Power Rating (VA) | 8600 VA |
| Power Rating (VA) | 8600 VA |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Remote Outlet Switching | No |
| Remote Outlet Switching | No |
| Brand Name | Panduit |
| Brand Name | Panduit |
| Depth | 2.1" |
| Depth | 2.1" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 58.7" |
| Height | 58.7" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | PANDUIT CORP |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36B22M |
| Manufacturer Part Number | P36B22M |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Marketing Information | Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13 C19 or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA L15-30P |
| Plug/Connector Type | NEMA L15-30P |
| Product Line | SmartZone |
| Product Line | SmartZone |
| Product Name | P36B22M Vertical Basic Power Distribution Unit |
| Product Name | P36B22M Vertical Basic Power Distribution Unit |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Double Pole |
| Protection Type | Double Pole |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 613056263819 |
| UPC Alternates | 613056263819 |
| Width | 2" |
| Width | 2" |
