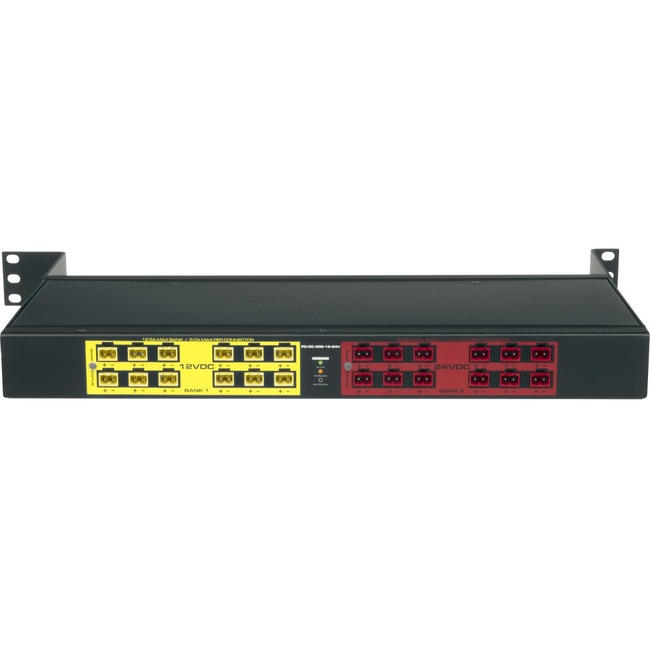

Middle Atlantic 24-Outlets PDU

Name: Middle Atlantic 24-Outlets PDU
Brand: Legrand Group
SKU: 39121017
Price: 810.39 USD

New

Middle Atlantic 24-Outlets PDU - NEMA 5-15P - 24 x Screw Terminal - 120 V AC, 230 V AC - 0U/1U - Rack-mountable, Flush-mountable

0 Review(s) Item: PD-DC-300-12-24V | By: Middle Atlantic | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Industry-leading number of outputs with power distributed to as many as 24 devices
Maximum current capacity, up to 300W of power: 12V and 24V, 12.5A and 6.25A respectively (300W)
Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
Greater mounting flexibility with multi-mount design that fits in 1 rackspace or can mount at the back or side of the rack simply by rotating mounting brackets
Color-coded screw terminal connectors with industry standard 12V and 24V and polarity labeling for easy identification
120V-230V input supports both North American and European installations

More Details

Sorry This Product is Currently not Available to Buy.

Plug/Connector Detail	1 x NEMA 5-15P
Power Rating (Watt)	300 W
Receptacle Detail	24 x Screw Terminal
Brand Name	Middle Atlantic
Depth	7.3"
Environmental Certification	EU RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Height	1.8"
Input current	12.50 A
Input voltage	230 V AC
Input voltage	120 V AC
Input Voltage Range	120 V AC - 230 V AC
Limited Warranty	3 Year
Manufacturer	Legrand Group

Manufacturer Part Number	PD-DC-300-12-24V
Manufacturer Website Address	http://www.legrand.us
Marketing Information	Optimize any installation with the industry-leading power capacity of the fixed voltage DC Power Distribution line. These solutions not only remove messy space-consuming unreliable wall warts and other power clutter from the design but also provide maximum power to support a multitude of 12V and 24V devices. The 300W unit provides high current capacity to an extensive number of 12V and 24V outputs maximizing industry standard voltages in a single unit. The multi-mount design can be installed in an available 1RU space or at the back or side of the rack for zero-U mounting providing ultimate installation flexibility. Promoting enhanced design of system power demands while still providing a seamless install experience the 300W DC Power Distribution line is innovatively engineered for multiple applications spanning markets from North America to Europe.
Mount Type	Flush-mountable
Mount Type	Rack-mountable
Output voltage	24 V
Output voltage	12 V
Package Contents	24-Outlets PDU Flexible Mounting Hardware Color-coded Screw Terminal Connectors to Connect Devices 1 x 6ft IEC Power Cord
Plug/Connector Type	NEMA 5-15P
Product Name	24-Outlets PDU
Product Type	PDU
Protection Type	Overload Protection
Protection Type	Surge Protection
Rack Height	0U/1U
Receptacle Type	Screw Terminal
Width	19"
