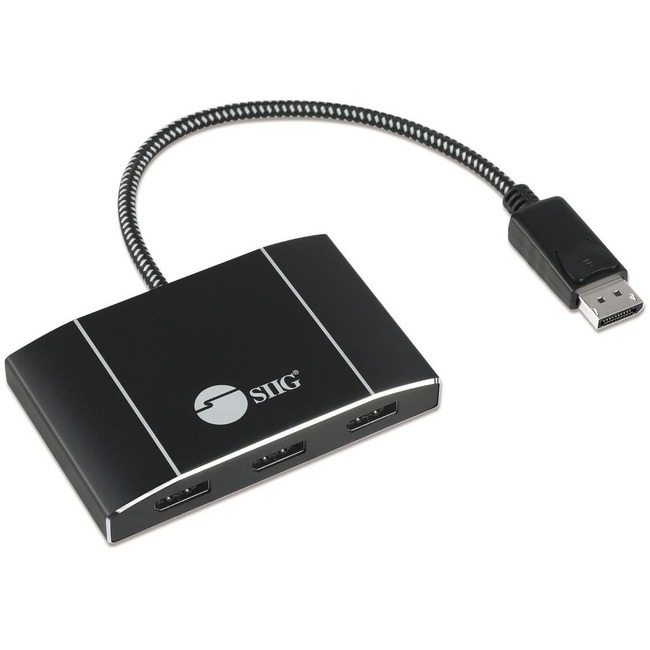

8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter

8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter

New
8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - Plug-n-play - Total Bandwidth 32.4Gbps (Max)
0 Review(s) Item: CE-DP0P11-S1 | By: SIIG |  46 In Stock
$62.93 Retail $119.99
  • Enjoy the feast of movies with both video and sound device supported
  • Features DisplayPort cable type
  • Features Multi-Stream Transport (MST) Support
  • Fully compatible with tablets
More Details

100% Quality & Money Back Guaranteed!


You may be also interested
8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - Plug-n-play - Total Bandwidth 32.4Gbps (Max)
Plug-n-play - Total Bandwidth 32.4Gbps (Max)

Product Specifications

Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 5-pin Micro USB - Female
Connector on Second End Details3 x 20-pin DisplayPort 1.4 Digital Audio/Video - Female
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second EndDisplayPort 1.4 Digital Audio/Video - Female
Connector Type on Second EndMicro USB - Female
Brand NameSIIG
Brand NameSIIG
Cable CharacteristicSplitter Cable
Cable CharacteristicSplitter Cable
Cable typeDisplayPort
Cable typeDisplayPort
ColorBlack
ColorBlack
Compatibility

Microsoft Surface Book

Microsoft Tablet:

  • Surface Pro 2
  • Surface Pro 3
  • Surface Pro 4

AMD Graphics Card:

  • RX560
  • RX570
  • Radeon 7200 Series
Compatibility

Microsoft Surface Book

Microsoft Tablet:

  • Surface Pro 2
  • Surface Pro 3
  • Surface Pro 4

AMD Graphics Card:

  • RX560
  • RX570
  • Radeon 7200 Series
Connector on First EndDisplayPort Male Digital Audio/Video
Connector on First End1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video
Connector on First End1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video
Connector on First EndDisplayPort Male Digital Audio/Video
Connector on Second EndDisplayPort Female Digital Audio/Video
Connector on Second EndDisplayPort Female Digital Audio/Video
Connector on Second EndMicro USB Female Power
Connector on Second End3 x 20-pin DisplayPort Female DisplayPort 1.4 Digital Audio/Video
Connector on Second EndMicro USB Female Power
Connector on Second End1 x 5-pin Micro USB Female Power
Connector on Second End3 x 20-pin DisplayPort Female DisplayPort 1.4 Digital Audio/Video
Connector on Second End1 x 5-pin Micro USB Female Power
Country of originChina
Country of originChina
Data transfer rate32.4 Gbit/s
Data transfer rate32.4 Gbit/s
Device SupportedTablet
Device SupportedMonitor
Device SupportedAudio/Video Device
Device SupportedGraphics Card
Device SupportedDesktop Computer
Device SupportedGraphics Card
Device SupportedDesktop Computer
Device SupportedTablet
Device SupportedNotebook
Device SupportedNotebook
Device SupportedMonitor
Device SupportedAudio/Video Device
Environmental CertificationRoHS
Environmental CertificationRoHS
Environmentally FriendlyYes
Environmentally FriendlyYes
FeaturesMirror Display Mode
FeaturesHDCP 2.2
FeaturesEMI Protection
FeaturesMirror Display Mode
FeaturesHDCP 2.2
FeaturesPlug & Play
FeaturesEMI Protection
FeaturesExtended Display Mode
FeaturesPlug & Play
FeaturesEyefinity Technology
FeaturesDisplay Stream Compression (DSC)
FeaturesMulti-Stream Transport (MST) Support
FeaturesHDR Support
FeaturesExtended Display Mode
FeaturesMulti-Stream Transport (MST) Support
FeaturesHDR Support
FeaturesEyefinity Technology
FeaturesDisplay Stream Compression (DSC)
Limited Warranty2 Year
Limited Warranty2 Year
ManufacturerSIIG Inc
ManufacturerSIIG Inc
Manufacturer Part NumberCE-DP0P11-S1
Manufacturer Part NumberCE-DP0P11-S1
Manufacturer Website Addresshttp://www.siig.com
Manufacturer Website Addresshttp://www.siig.com
Marketing Information
  • Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
  • Provides multiple display modes such as Mirror mode same content on each display Extended mode with individual content on each display and Panoramic Video Wall mode which combines multiple monitors to use as one large display
    Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity Intel or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display two 4K@60Hz displays three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example three 2K three 1080p 4K+2K+1080p etc.
    Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Reset button allows re-detection of all the displays if any of the displays are not detected
  • Plug-n-play trouble-free set up without complicated hardware or driver installation
  • High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
    Note: Replaces CE-DP0D12-S1

    Compatibility Notes:
    - Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
    - Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
    - Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays
Marketing Information
  • Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
  • Provides multiple display modes such as Mirror mode same content on each display Extended mode with individual content on each display and Panoramic Video Wall mode which combines multiple monitors to use as one large display
    Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity Intel or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display two 4K@60Hz displays three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example three 2K three 1080p 4K+2K+1080p etc.
    Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Reset button allows re-detection of all the displays if any of the displays are not detected
  • Plug-n-play trouble-free set up without complicated hardware or driver installation
  • High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
    Note: Replaces CE-DP0D12-S1

    Compatibility Notes:
    - Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
    - Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
    - Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays
Package Contents
  • 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
  • Micro-USB power cable
  • Quick Start Guide
Package Contents
  • 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
  • Micro-USB power cable
  • Quick Start Guide
Product colorBlack
Product Name1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
Product Name1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
Product TypeA/V Cable
Product TypeA/V Cable
Supported Resolution7680 x 4320
Supported Resolution7680 x 4320
UPC Alternates662774043944
UPC Alternates662774043944
Weight (Approximate)0.28 lb
Weight (Approximate)0.28 lb
