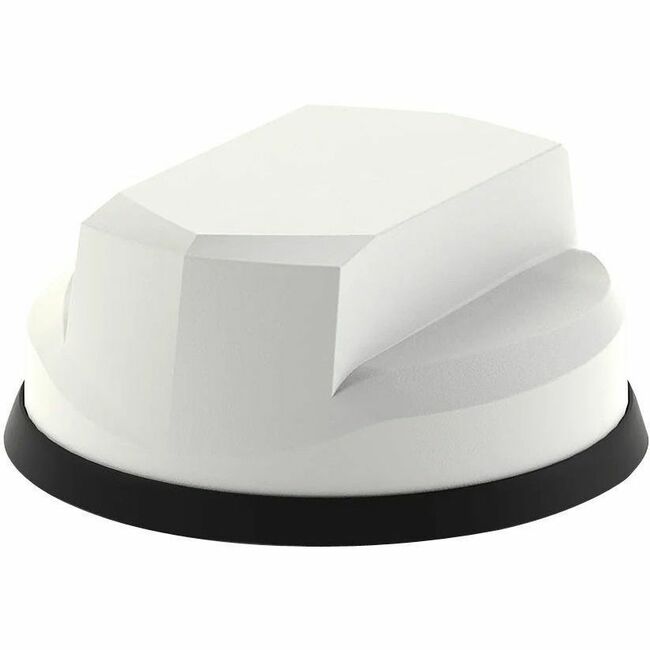

Panorama Antennas LG-IN2457 Antenna
| $309.90 Retail $404.44 |
- Provides gain of up to 9 dBi
- Get enhanced signals for your wireless router with this antenna
- Designed to be light in weight and easy to install
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS, Wireless Data Network - White - Panel - Omni-directional - SMA, RP-SMA Connector - TAA Compliant
Product Specifications
| Antenna Gain | 9 dBi |
| Directivity | Omni-directional |
| Operating Frequency Range | 1710 MHz to 6000 MHz |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 1562 MHz to 1612 MHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Operating Frequency Range | 2.4 GHz |
| Application/Usage | Wireless Router |
| Application/Usage | Wireless Data Network |
| Application/Usage | Cellular Network |
| Application/Usage | GPS |
| Brand Name | Panorama Antennas |
| Compatibility | Cradlepoint COR IBR900 Series Routers |
| Connector Type | RP-SMA |
| Connector Type | SMA |
| Diameter | 7.09" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Panel |
| Height | 3.15" |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LG-IN2457-W |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Marketing Information | The LG-IN2457 is a high performance 2x2 MiMo LTE 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection. |
| Product color | White |
| Product Model | LG-IN2457 |
| Product Name | LG-IN2457 Antenna |
| Product Type | Antenna |
