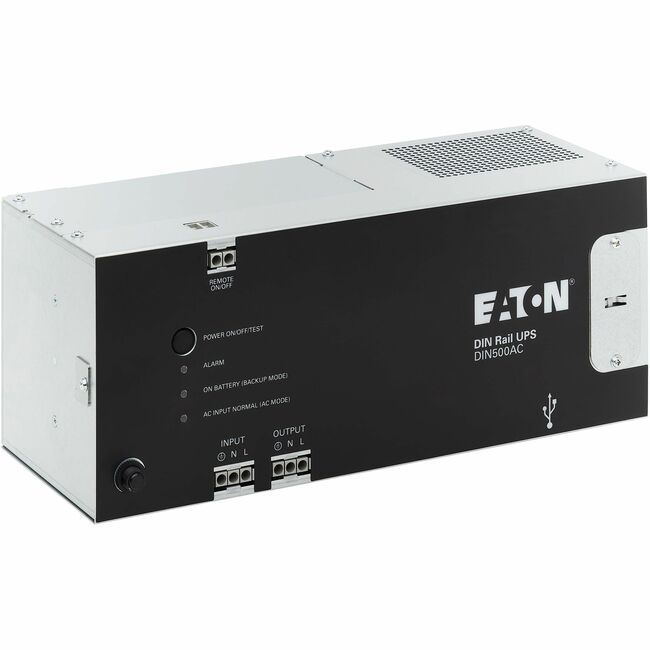

Eaton 500VA 300W 120V AC DIN Rail Industrial UPS - Hardwire Input/Output
| $526.00 Retail $764.00 |
- Recommended for industrial locations where temperatures range within 0°C and 50°C
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps power running during brief outages to allow time for safe system shutdown
- Restarts automatically when power is restored, eliminating a costly site visit
- Built-in clamp mounts easily to a "top hat" 35mm DIN rail with no mounting screws or brackets required
- 2-year limited warranty
For PDU - 100 V AC, 240 V AC16 A - 8 ft Cord Length
Product Specifications
| DC System Voltage | 12 V DC |
| Load Capacity (VA) | 500 VA |
| Load Capacity (W) | 300 W |
| Maximum Operating Elevation | 9843 ft |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.6 |
| Phase | Single Phase |
| Receptacle Detail | 1 x Hardwired |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Application/Usage | Edge Computing |
| Application/Usage | Manufacturing Facility |
| Application/Usage | Machine Control |
| Application/Usage | IT System |
| Application/Usage | Factory |
| Application/Usage | Automation Industry |
| Application/Usage | Network |
| Application/Usage | Industrial |
| Application/Usage | Storage Device |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Depth | 7.7" |
| Display | LED |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | DIN Rail |
| Height | 15.8" |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 500 VA/300 W |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DIN500AC |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Flexible Power Protection for Smart Industrial Applications The DIN500AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing networking control and storage equipment in factories warehouses edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment. Ideal for Factory Floors and Extreme Temperatures Get full use of the DIN500AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F) which expands the number of locations in which it can be used. Built to fit into small spaces the DIN500AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability. Reliable Battery Backup Keeps You Operational Through Power Outages Power outages not only drain productivity from the factory floor but they also damage expensive equipment. The DIN500AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts overvoltages surges and line noise from damaging equipment that could destroy data and contribute to costly downtime. Convenient Automatic Restart The DIN500AC automatically restarts when AC power is restored after an outage eliminating the need for a costly site visit. Stay in Control of Your Operation LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN500AC is compatible with PowerAlert® Office software for UPS monitoring and control via USB connection. Easy Preventative Maintenance and Initial Troubleshooting The DIN500AC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads. |
| Maximum Operating Temperature | 122°F (50°C) |
| Output voltage | 115 V AC |
| Package Contents |
|
| Plug/Connector Type | Hardwired |
| Product Name | DIN500AC 500VA DIN Rail UPS |
| Product Type | Standby UPS |
| Status Indicators | LED Indicators:
|
| Surge energy rating | 558 J |
| Thermal Dissipation | 9.09 W |
| Transfer Time | 10 ms |
| Weight (Approximate) | 11.60 lb |
| Width | 7.9" |
