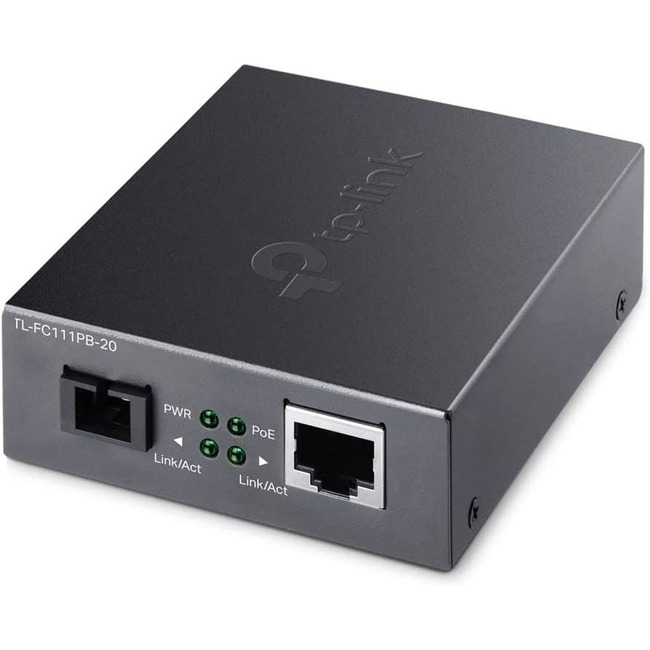

TP-Link TL-FC111PB-20 - 10/100 Mbps WDM SFP to RJ45 Fiber to Ethernet Media Converter with 1-Port PoE
| $24.52 Retail $24.99 |
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1310 nm, Rx 1550nm; Compatible TP-Link model: TL-FC111A-20.
10/100 Mbps RJ45 Port to 100Base-FX Single-Mode Fiber - Extend Fiber Distance Up to 20 km
Product Specifications
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1550 nm |
| Maximum Distance Supported | 12.43 Mile |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| SC Port Type | Duplex |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 2.9" |
| Ethernet Technology | Fast Ethernet |
| Form factor | Rack-mountable |
| Form factor | Standalone |
| Height | 1.1" |
| Limited Warranty | 2 Year |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-FC111PB-20 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network. How This Product Works TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology helping send and receive data at a distance of up to 20 km with only a single mode fiber which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20. Other Features Besides this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Package Contents |
|
| Power source | Power Adapter |
| Product Name | 10/100Mbps WDM Media Converter with 1-Port PoE |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 840030703065 |
| Width | 3.7" |
