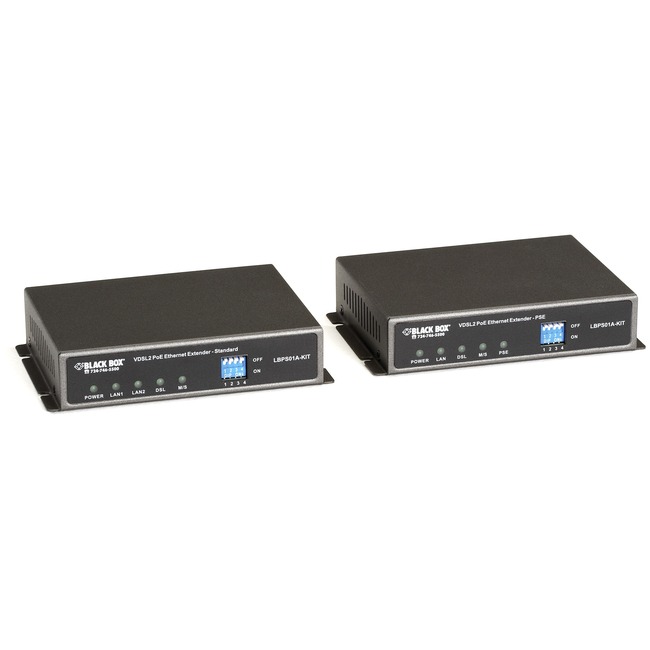

Black Box PoE Ethernet Extender Kit

Name: Black Box PoE Ethernet Extender Kit
Brand: Black Box Corporation
SKU: 43222608
Price: 465.76 USD

New

0 Review(s) Item: LBPS01A-KIT | By: Black Box | 0 In Stock

Sorry This Product is Currently not Available to Buy.

The VDSL2 PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device (802.3af).|Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).|An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface.|Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
|Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
|Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
|DIP switches for master/slave configuration.
|Low latency for video and voice applications.|

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Black Box PoE Ethernet Extender Kit

Product Specifications

Additional Information	Kit includes two extenders-one of which acts as PoE power source equipment (PSE) the other is a standard extender. Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire. Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m). Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps. Autosensing autonegotiating 10-/100-Mbps Ethernet port. Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side. DIP switches for master/slave configuration. Low latency for video and voice applications.
Brand Name	Black Box
Country of origin	Taiwan
Depth	3.5"
Environmental Certification	WEEE
Environmental Certification	RoHS
Environmentally Friendly	Yes
Height	0.8"
Limited Warranty	1 Year

Manufacturer	Black Box Corporation
Manufacturer Part Number	LBPS01A-KIT
Manufacturer Website Address	http://www.blackbox.com
Marketing Information	This high-speed Ethernet extender enables you to power PoE devices without the need for an additional power outlet. The VDSL2 PoE Ethernet Extender Kit features two extenders one of which is a PoE PSE device which supplies power to a PoE PD device such as an IP camera or wireless access point. This enables you to seamlessly integrate the extenders into a PoE infrastructure and eliminates the need to supply a spare power outlet for distant network devices. Installation is easy - just connect the extenders then configure them using simple DIP switches. This product is covered by one or more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838. Ethernet Extender Kit PoE. Extends 10/100Mbps Ethernet RJ45 over copper or CATx line interface RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders using a standard 2-wire connection which simplifies your life and provides a cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. These 10BASE-T/100BASE-TX Ethernet Extenders use VDSL2 technology to provide an easy inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 100-240VAC power supplies. The Kit features two extenders one of which is a PoE PSE device which supplies power (802.3af) to a PoE PD device such as an IP camera or wireless access point.
Package Contents	1 x VDSL2 PoE Ethernet Extender PSE (PSE Unit) 1 x VDSL2 PoE Ethernet Extender PSE (Standard Unit) 1 x 12V DC 2A Power Adapter for VDSL2 PoE Ethernet Extender PSE (PSE Unit) 1 x 5V DC 1A Power Adapter for VDSL2 PoE Ethernet Extender PSE (Standard Unit) 1 x CD Containing the User's Manual
Product Name	PoE Ethernet Extender Kit
Product Type	Network Extender
UPC Alternates	093007105519 641676611925 787416074732 822088106241
Width	4.7"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
