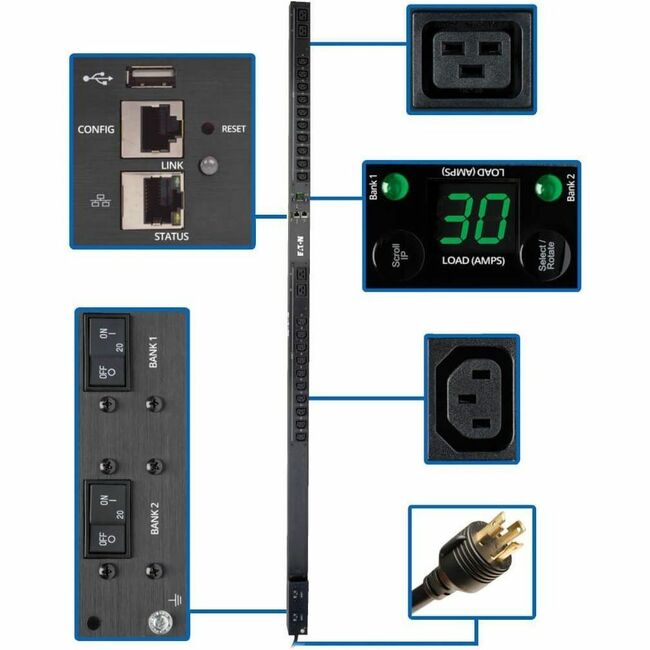

Tripp Lite PDU Monitored 5/5.8kW 208/240V, 20 C13 4 C19, LX Platform Interface, 0URM Rackmount Vertical TAA
| $0.94 Retail $947.24 |
- 5/5.8kW 208/240V 30A monitored PDU
- 24 outlets-20 C13, 4 C19-with cord retention brackets
- NEMA L6-30P input with 10 ft. AC power cord
- Digital ammeter for on-site load monitoring in real time
- Built-in LX Platform interface for remote access
Monitored - NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5800 VA - 0U - Vertical - Rack Mount - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| PDU Type | Monitored |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (Watt) | 5800 W |
| Power Rating (Watt) | 5800 W |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.7" |
| Depth | 2.7" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 70" |
| Height | 70" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management |
|
| Management |
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMNV30HVLX |
| Manufacturer Part Number | PDUMNV30HVLX |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage frequency and load levels via built-in network connection. Recommended for any IT or industrial application it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source generator or protected UPS. |
| Marketing Information | The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage frequency and load levels via built-in network connection. Recommended for any IT or industrial application it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source generator or protected UPS. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 200 V AC |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Output voltage | 200 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Name | PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU |
| Product Name | PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU |
| Product Type | PDU |
| Product Type | PDU |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 037332204479 818216968621 |
| UPC Alternates | 037332204479 818216968621 |
| Weight (Approximate) | 11.50 lb |
| Weight (Approximate) | 11.50 lb |
| Width | 2.2" |
| Width | 2.2" |
