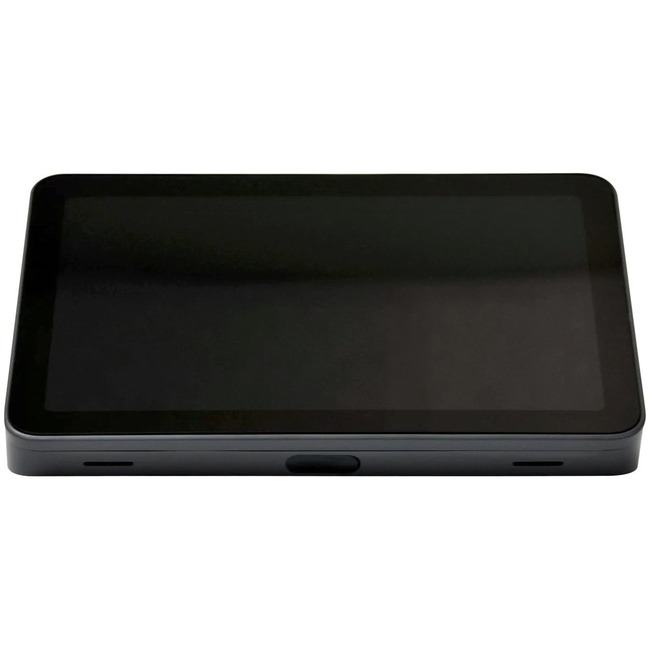

Mimo Monitors Myst Capture MY-1090CP-G 10.1" LCD Touchscreen Monitor - 12 ms - 11" Class - Capacitive - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 400 Nit - LED Backlight - HDMI - USB - RoHS
11" Class - Capacitive - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 400 Nit - LED Backlight - HDMI - USB - RoHS
| Glass Hardness | 3H |
| Panel Technology | Thin Film Transistor (TFT) |
| Touchscreen Type | Capacitive |
| Backlight Technology | LED |
| Brand Name | Mimo Monitors |
| Brightness | 400 Nit |
| Color Supported | 16.7 Million Colors |
| Depth | 5.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Anti-glare |
| Features | Cable Management |
| Features | Wide Viewing Angle |
| Features | Power Management |
| Height | 8.3" |
| Horizontal Viewing Angle | 170° |
| Manufacturer | Mimo Monitors Inc |
| Manufacturer Part Number | MY-1090CP-G |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Marketing Information | An elegant upgrade to the award-winning Mimo Vue Capture: Reimagine your conference room
This new generation display takes the best of the award-winning Mimo Vue Capture and levels it up by adding robust features that are sure to elevate any conference room space. With powerful new capabilities a sleek and sophisticated high-end low-profile design plus a convenient USB connection this feature-rich display is perfect for huddle rooms and other small conference rooms where space is at a premium and video conferencing is a priority.
An ideal 10.1" conference room interface at a truly accessible price point the Mimo Myst Capture is fully compatible with Google Meet and several other platforms for ultimate convenience and flexibility. With seamless setup and maximum visual appeal this high bright high contrast display has integrated HDMI capture USB 2.0 pass thru for a speaker/mic box at the table and is available in a wall mount or swivel mount to accommodate the setup of your space. Additional features include integrated cable management and strain relief and support for standby and low-power modes.
The HDMI capture capability allows your connected computer to stream high quality video up to 1080p video at 60 frames per second. The capture device converts video and audio from your HDMI source device into standard UVC (USB Video Class) and UAC (USB Audio Class). This video data steam can be presented to other displays or with video processing sent over the internet to other online meeting participants or many other options.
The Mimo Myst Capture is truly built to support your conference room now and as the
workplace evolves allowing for the scaling of huddle rooms as well as accommodating for those working in the office and afar. Mimo Myst Capture USB Monitor Features - Sharp Resolution
- Optically bonded low glare capacitive touchscreen
- Very high contrast ratio and brightness (LCD panel)
- High quality panel with very wide viewing angle.
- Traditional USB 3.0 connection to PC
- Fully compatible with Windows 8 (and newer) Chrome Linux and Mac OS X (future release).
- Low profile table top or wall-mount
- Mechanical drawings available upon request
Applications - Conference Rooms
- Control interface where HDMI capture is needed
|
| Maximum resolution | 1280 x 800 |
| Mount Type | Desk Mountable |
| Mount Type | Wall Mountable |
| Native Contrast Ratio | 1000:1 |
| Packaged Quantity | 1 |
| Placement | Tabletop |
| Product Line | Myst Capture |
| Product Name | Myst Capture MY-1090CP-G LCD Touchscreen Monitor |
| Product Type | LCD Touchscreen Monitor |
| Response time | 12 ms |
| Screen Mode | WXGA |
| Screen Size Class | 11" |
| Viewable Screen Size | 10.1" |
| Width | 10.4" |
