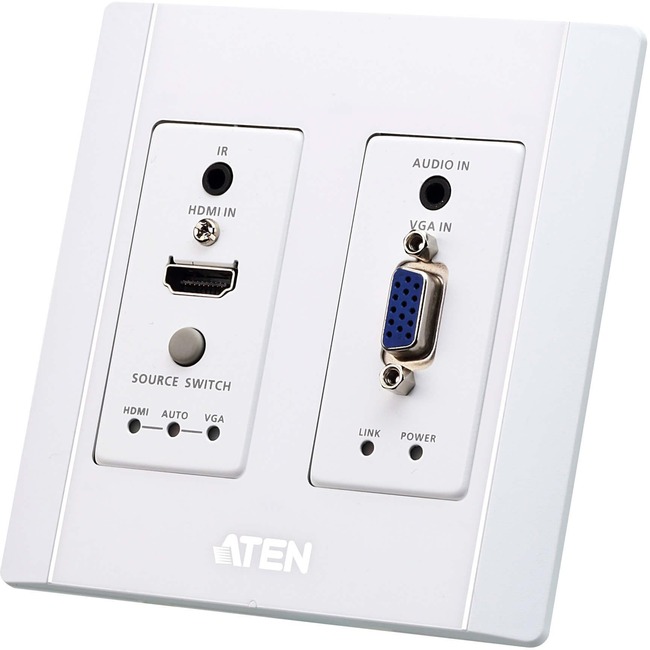

ATEN VE2812AUST Video Extender Transmitter
| $325.62 Retail $441.00 |
- Extends HDMI or VGA signals over a single Cat 5e/6/6a cable, HDMI: 4K distance up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, VGA: 1600 x 1200 and 1920 x 1200 up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode - up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Built-in PoH (Power over HDBaseT) function - the VE2812AUST receives power supply from the HDBaseT output port on the connected device
- Supports Auto Switch - automatically switches to a newly plugged-in source
2 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K, Full HD - 4096 x 2160 - Twisted Pair - Category 6a - Wall Plate, Wall Mountable, Table Mount
Product Specifications
| Network (RJ-45) | Yes |
| Number of Input Devices Supported | 2 |
| Transmitter Depth | 4.10" |
| Transmitter Height | 2.04" |
| Transmitter Weight (Approximate) | 7.41 oz |
| Transmitter Width | 3.46" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Form factor | Wall Plate |
| Form factor | Table Mount |
| Form factor | Wall Mountable |
| Graphics Modes | 4K |
| Graphics Modes | Full HD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE2812AUST |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN VE2812AUST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function the VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With US Wall Plate design the VE2812AUST can be conveniently mounted in a two - gang junction box. The VE2812AUST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission it supports 3D Deep Color and embedded HD lossless audio formats. To pursue longer distance transmission it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. |
| Maximum Operating Distance | 492.13 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Product Name | VE2812AUST Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 672792011429 |
