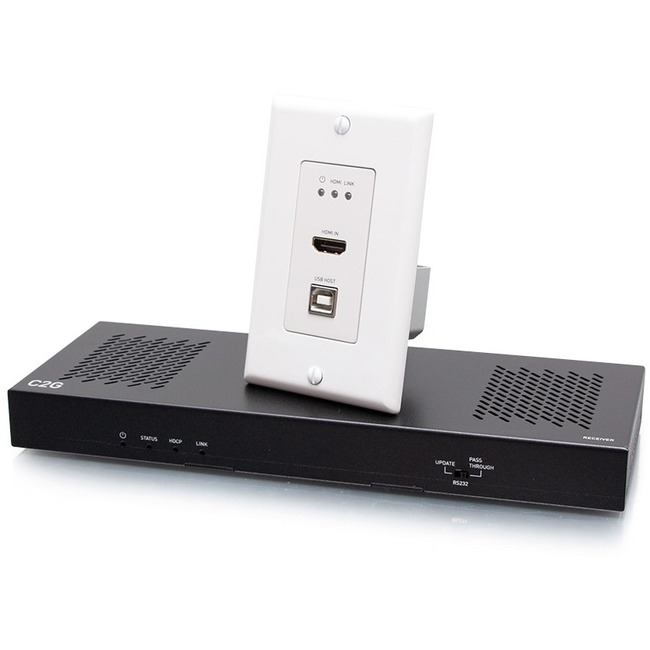

C2G 4K HDMI HDBaseT + USB-B and RS232 Wall Plate Transmitter to Receiver

HDMI® HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant making sure that the connection from the source is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With one-way Power over HDBaseT (PoH) support the transmitter gets its power from the receiver so no additional power adapter is required allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

HDMI® HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant making sure that the connection from the source is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With one-way Power over HDBaseT (PoH) support the transmitter gets its power from the receiver so no additional power adapter is required allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant making sure that the connection from the source is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With one-way Power over HDBaseT (PoH) support the transmitter gets its power from the receiver so no additional power adapter is required allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.

• 1 x Transmitter
• 1 x Receiver

• 1 x Transmitter
• 1 x Receiver
