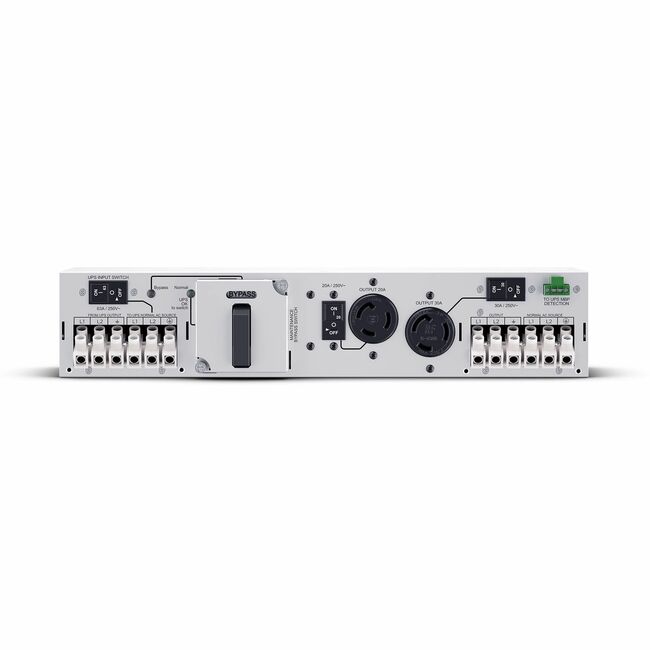

CyberPower MBP63A2 208 VAC 63A Maintenance Bypass UPS
| $780.58 Retail $1,055.00 |
- Maintenance Bypass PDU: Normal mode, Bypass mode
- Amps: 63A
- Volts: 200 - 240 VAC
- Input plugs: Terminal Blocks (utility, UPS output)
- Total outlets: 1 NEMA L6-20R, 1 NEMA L6-30R, Terminal Block
- Power cords: L6-30P power cord 3.3ft to UPS output and L6-30R power cord 3.3ft to UPS input, Conduits with internal wires for MBP63A2 to UPS input / output 3ft
- LED indicators: Normal (Green), Bypass (Red)
- Size: 2U Rack, Tower, Wall
- Dimensions (in.): 17.0W x 3.4H x 4.9D
- UPS mounting hardware: Yes
3 Outlets, 3.3 ft, Horizontal, 2U, 3YR Warranty
Product Specifications
| Mounting Orientation | Horizontal/Vertical |
| Mounting Orientation | Horizontal/Vertical |
| PDU Type | Hot-swappable |
| PDU Type | Hot-swappable |
| Receptacle Detail | 1 x NEMA L6-20R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L6-20R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 1 x Hardwire Terminal Block |
| Receptacle Detail | 1 x Hardwire Terminal Block |
| Additional Information |
|
| Additional Information |
|
| Brand Name | CyberPower |
| Brand Name | CyberPower |
| Certifications & Standards | UL 1778 |
| Certifications & Standards | UL 1778 |
| Compatibility | CyberPower Smart App Online:
|
| Compatibility | CyberPower Smart App Online:
|
| Cord Length | 3.30 ft |
| Cord Length | 3.30 ft |
| Country of origin | China |
| Country of origin | China |
| Depth | 4.9" |
| Depth | 4.9" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 3.4" |
| Height | 3.4" |
| Input current | 63 A |
| Input current | 63 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer | CyberPower Systems Inc |
| Manufacturer Part Number | MBP63A2 |
| Manufacturer Part Number | MBP63A2 |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Manufacturer Website Address | http://www.cyberpowersystems.com |
| Marketing Information | Designed for datacenters and other electrically demanding applications the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU) allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance replacing batteries or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle. Depending on UPS model either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged industrial-grade metal housing protects the MBP63A2. With a 2U form factor this PDU can be mounted horizontally or vertically in a standard server rack on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU. |
| Marketing Information | Designed for datacenters and other electrically demanding applications the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU) allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance replacing batteries or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle. Depending on UPS model either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged industrial-grade metal housing protects the MBP63A2. With a 2U form factor this PDU can be mounted horizontally or vertically in a standard server rack on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU. |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | Hardwire Terminal Block |
| Plug/Connector Type | Hardwire Terminal Block |
| Product Condition | New |
| Product Condition | New |
| Product Name | MBP63A2 3-Outlet PDU |
| Product Name | MBP63A2 3-Outlet PDU |
| Product Series | Maintenance Bypass |
| Product Series | Maintenance Bypass |
| Product Type | PDU |
| Product Type | PDU |
| Rack Height | 2U |
| Rack Height | 2U |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-20R |
| UPC Alternates | 649532931385 |
| UPC Alternates | 649532931385 |
| Weight (Approximate) | 8.80 lb |
| Weight (Approximate) | 8.80 lb |
| Width | 17" |
| Width | 17" |
